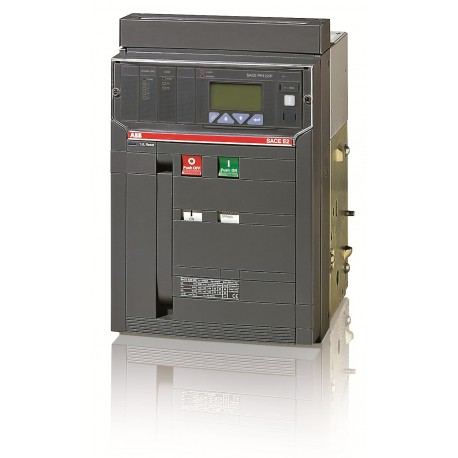

ABB 1SDA055795R1 1SDA055795R1 ABB E2B 1600 PR122/P-LI In 1600A 3p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055795R1 ABB E2B 1600 PR122/P-LI In 1600A 3p F HR

1SDA055795R1

055795

ABB

1 Pcs.

E2B 1600 PR122/P-LI In=1600A 3p F HR E2B1600 PR122/P LI 3P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP4c01917b-07d3-43e3-bb99-11739876822c Italy
Simplified SCIP580cd9af-9c7f-4237-8090-f63582441fd6 Poland
7f56a475-230e-4484-b814-d402e1abe2ab Germany
24d3ac8e-9428-4876-a614-c4e213809f21 Netherlands
7b362c73-f934-4dcb-99f3-467d1408b6c5 Germany
f0e56a64-9068-414e-9ffc-7d05ecd60c02 Estonia
5faea534-2a65-43eb-bb46-96740ef5835b Belgium
b4a24edc-9f8b-4f0d-b58b-cda2d572880d Greece
640d819c-447e-4000-8c3c-d14257912845 Sweden
21bc3af5-8e94-4897-8624-7c4ac179c30b Bulgaria
296ea728-103c-49a2-9f08-c102af4ec3bc Sweden
42a161ad-04ec-4168-b21f-5a01a87018c9 France
43400ea5-96f6-440b-b048-6d83ecf78711 Spain
9594d604-c6a5-49d0-b28f-d90184b4fc2f Germany
b7f75b45-c2a0-4054-863a-33f794d32473 Hungary
47f522cc-40bc-4670-aa21-c37814fc4b90 France
c2663c0e-d166-46b1-929a-754aa421afb6 Czech Republic
ad5fb04f-03f1-4b69-aef6-5c78c2b4ba31 Germany
d28dc680-84fe-49ac-8d37-a2f6c6edf300 Norway
404197f2-722c-4a95-9a6e-2057f8117b55 Germany
a0f47bdc-681a-4785-974a-fd7699ca37d5 Denmark
3b5b1bf7-52fa-4dba-8e9b-b74a2b109ea4 Finland
4b77f8c7-a9b1-4422-b47a-73cf0b3954d4 Poland
fcb4b63d-da80-4900-8dbd-1583e6dc5fd9 Hungary
e93b309a-02fd-40e2-b99e-0616551cc63b Portugal
1e5fe72a-fcb4-4ff0-a62d-f8cb47cfb325 Croatia
fbba8c4c-349c-472e-afce-937babfb58bc Belgium
aba3cdce-5717-4ce9-89b1-2f21949d935d Poland
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644571351
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width296 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight45 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight55 kg
Package Level 1 EAN8015644571351
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 12000 cycle
Ue = 500 ... 690 V 10000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss115 W
Rated Current (In)1600 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1600 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)1600 A
Rated Voltage (Ur)690 V
ReleasePR122/P-LI
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE2
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
1SDH000460R0102
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
