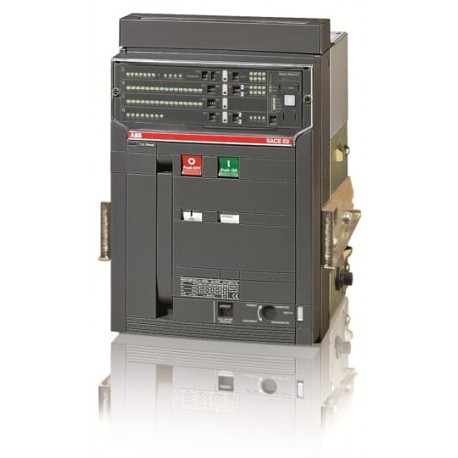

1SDA055809R1 ABB E2B 1600 PR121/P-LSI In 1600A 3p W MP
1SDA055809R1
055809
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Main power feeds in industrial facilities require robust interrupting devices like the Abb 1SDA055809R1 E2B 1600 PR121/P-LSI In 1600A 3p W MP. These withdrawable air circuit breakers offer reliable electronic trip control to safely clear major electrical faults and isolate sections of a facility.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 4afd7949-50c2-40bd-b947-aa4045bb0c91 Italy
- Simplified SCIP: fcc69e21-be21-4ec6-a4da-db4b3d8f1a29 Poland
- Environmental Information: 9AKK10103A6076
- EAN: 8015644571498
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 4afd7949-50c2-40bd-b947-aa4045bb0c91 Italy |
| Simplified SCIP | fcc69e21-be21-4ec6-a4da-db4b3d8f1a29 Poland |
| 05c14cb9-a443-458d-a092-d0af676a14f2 Sweden | |
| 24bf7f8a-acb9-416a-932b-10b1d2a38b29 Estonia | |
| 31abff2c-3cdb-4f36-9956-cfa371dd5041 Spain | |
| 2791aecb-2797-4049-a4fd-4bffff70d19e Germany | |
| d8f9e474-7905-4bc1-866d-437677eab982 Hungary | |
| af570228-e8b3-4a16-b17d-540363268d9b France | |
| dd54765f-beff-469d-aacd-3323faeebd74 France | |
| 88f83fd1-3e6a-4131-88b3-e652955ad071 Sweden | |
| cc8f1c10-11c8-431a-a3e8-f00d704f5d82 Belgium | |
| 96596f5b-b7dd-4890-b87f-5a304d2f5fa6 Germany | |
| bb3f624c-f769-4507-96ac-d19517a31fb1 Greece | |
| 6818b0a5-416e-4574-bbd7-db2c77311f88 Netherlands | |
| b5a098d6-6254-46f6-a71d-ad0165e122fa Germany | |
| ac5f00ec-367d-424d-9c77-ff49102be8e1 Bulgaria | |
| 50b848d4-f8b2-4cee-b028-18666b122461 Belgium | |
| 3f7065b0-91ce-43fe-baa9-ec90ecd6b26a Poland | |
| 751f9b19-c32e-4d18-8a0d-af972cf08b09 Czech Republic | |
| 602a7492-5b06-4c22-a74b-3fc1dfb1e2aa Croatia | |
| 1161f5a6-024d-45ea-85d1-76384ce85e51 Portugal | |
| 918789f2-dfc2-46e2-8017-a9777825e64e Hungary | |
| 21f86da9-79e7-4c5d-b2f7-c58647c58dd6 Poland | |
| cc5ef9ed-8f0f-4786-807a-37e236dc77bb Finland | |
| 0526c123-38ea-4db1-b56f-df2741e8f2b3 Norway | |
| bda81f77-1967-45fb-b1ae-049598f9529a Germany | |
| ccf3fb18-9fbb-47a2-9ff3-0323b382074a Germany | |
| 7e8fe44c-5bcb-443a-aac6-04f3692dd284 Denmark | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644571498 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644571498 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 12000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 215 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
