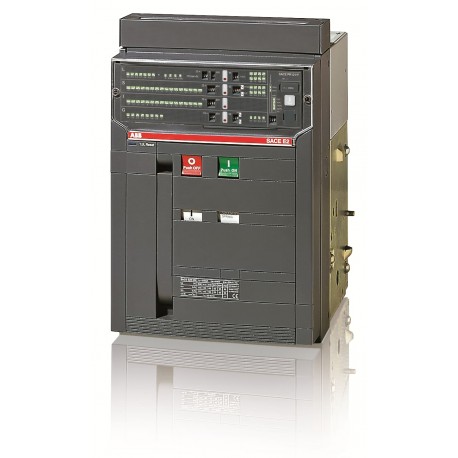

1SDA055793R1 ABB E2B 1600 PR121/P-LSI In 1600A 3p F HR
1SDA055793R1
055793
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SDA055793R1 E2B 1600 PR121/P-LSI In 1600A 3p F HR air circuit breaker provides robust fault protection for industrial electrical networks and high-capacity equipment. Such devices are deployed within main distribution panels to control electrical flow and isolate circuits during overloads.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: c5cd6dd4-2fd8-4269-aab9-b418a615ec39 Italy
- Simplified SCIP: d90babe2-160f-4f82-a1d8-e9d9f51fc43c Sweden
- Environmental Information: 9AKK10103A6076
- EAN: 8015644571337
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 45 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | c5cd6dd4-2fd8-4269-aab9-b418a615ec39 Italy |
| Simplified SCIP | d90babe2-160f-4f82-a1d8-e9d9f51fc43c Sweden |
| cc9c10ca-9629-4a7f-ac7b-b4862e87d40d France | |
| 25a449f3-3e7f-42a2-b714-a0bda01f4cd8 Germany | |
| 8683f9a3-db37-44cf-af8e-3279a9a74b7a Poland | |
| 2e9a8822-1b02-4bf3-ade3-c78fac56362d Norway | |
| c3a92962-f407-4934-97d0-a87d6aa0babe Spain | |
| 8ff73e61-d57e-4873-ad43-9431b4ee8af7 Poland | |
| 6e8ed26b-73df-44aa-aa0c-d5f15adc9428 Netherlands | |
| 8b9c6465-4f14-4631-a7e0-747d89cb0ee0 Poland | |
| e29ed79e-eea9-4880-b45a-24c37c8b08c7 Germany | |
| f7da3193-834d-4b4e-8c1d-9ec5ca280e45 Czech Republic | |
| 09babb37-5e73-4321-86db-1d6223c05b6e Croatia | |
| 4e1eaef7-665d-43fc-8f0e-1bd75b9c1c1b Greece | |
| f53d2a54-d21d-49f7-897f-8ee06c1b104d Bulgaria | |
| 7416197c-577f-4390-ab0a-238b93014c3a Finland | |
| bd49919c-3f5e-476c-baf0-eba2a39d5e8c Germany | |
| 4f048a00-573b-4fd2-853d-8302120a3d23 Belgium | |
| d425f12e-69cc-4b1b-9b9f-a28b64d7c2ad Germany | |
| 99b86836-0564-4527-bb1f-1beb5563d293 Denmark | |
| 917341bf-ea1d-48e0-8844-97cd0e7cbded Portugal | |
| c9fbdafa-e51f-4592-97eb-77aeeb91b9eb France | |
| 930fda28-f40b-4bb7-89ca-6326975b46f6 Germany | |
| a6952436-2876-414d-8091-e5ea50f79b1b Hungary | |
| 3b5025d9-86b9-4b1a-b22b-94c28d252aa3 Belgium | |
| ed5712ac-7d73-4721-8723-20977f3ee01e Sweden | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644571337 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 45 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644571337 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 12000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 115 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
