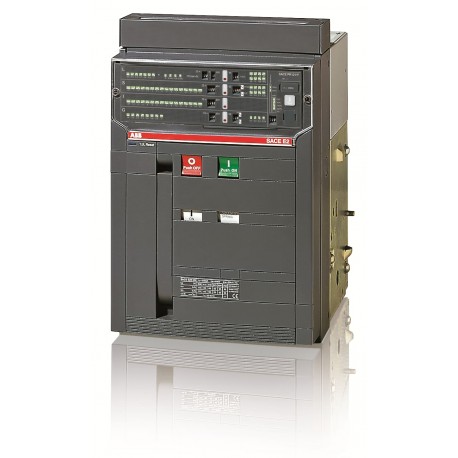

1SDA055792R1 ABB E2B 1600 PR121/P-LI In 1600A 3p F HR
1SDA055792R1
055792
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA055792R1 ABB E2B 1600 PR121/P-LI In 1600A 3p F HR is an air circuit breaker designed to provide dependable overload and short-circuit protection for high-current industrial installations. These robust circuit protection devices are standard additions to main switchgear lineups, ensuring safe power flow and quick isolation during faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 4cfae695-5d45-4ef3-a606-310f371475ff Italy
- Simplified SCIP: da25f544-00ea-4e1a-ba99-4c023e8d6b3e Poland
- Environmental Information: 9AKK10103A6076
- EAN: 8015644571320
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 45 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 4cfae695-5d45-4ef3-a606-310f371475ff Italy |
| Simplified SCIP | da25f544-00ea-4e1a-ba99-4c023e8d6b3e Poland |
| f81e7d6b-54cf-4289-a5da-0d575507dffa Bulgaria | |
| e16ce803-01b9-495d-b2ee-e9aa3d254585 Poland | |
| a62b6a4f-108e-4878-8ff2-a3445b04605c Norway | |
| 40776ea9-922b-4ae2-922b-b27d0b669fff Finland | |
| 77024959-4a50-495c-a045-5a3da6e0df72 Belgium | |
| 60af9afb-311a-4c26-b3ad-5a381cd67f70 Czech Republic | |
| 755185d6-9218-4bc3-b811-cf816e06dab0 Germany | |
| fc83cb38-d135-4d40-9197-7695f6f5fd8b Croatia | |
| 689db837-25b6-4026-b076-b274a23f201d Germany | |
| 4716f816-f7d9-4cd3-b366-b9dd38034ea6 Denmark | |
| 4079cddb-875d-4e7d-a13b-5081f9f269b0 Netherlands | |
| 3f9ecb69-45f9-4cf9-98a2-acc802983cad Poland | |
| 5e43b208-8212-4d2b-8e05-ba0928c930fc Portugal | |
| 694b973b-68cc-41dc-86ce-d7cbd41fe4d8 Hungary | |
| be224c63-5ebc-4981-bf95-08ed36da1da4 Germany | |
| 95d7e808-5c72-4059-8134-0b7fc96051e2 Sweden | |
| 7686d480-81a6-4d67-8b0e-d70f038df8aa France | |
| 9b09932b-6063-44e2-9da6-48c7ba166b8c Sweden | |
| 2f90ca04-a288-4c39-a829-b3a1b68b466b France | |
| aae53abc-b569-405c-9340-4ddfc53869d4 Germany | |
| b845b14a-49e9-4ebb-b818-e2e3d62596c4 Spain | |
| 75883f23-a5e6-43af-a716-60f27cef15a8 Hungary | |
| dab5379d-61fd-487d-aba0-1c7530da1641 Estonia | |
| ce93ed4b-ef8a-48a6-abaf-6410f26d79c6 Greece | |
| 5c113f8b-58ff-4dc1-8cba-5bb719421e8a Germany | |
| 9dbc7459-6114-4e5a-8c5e-a8fff094a116 Belgium | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644571320 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 45 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644571320 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 12000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 115 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LI |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
