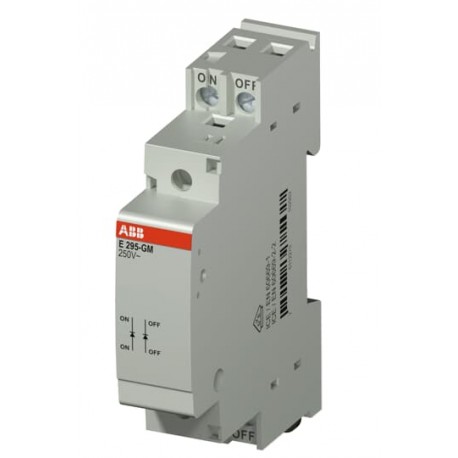

2TAZ310002R1000 ABB Module group E295-GM 16A
2TAZ310002R1000
310002
ABB
1 Pcs.
Automation > Latching relay
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB module group accessory, identified as part number 2TAZ310002R1000, is engineered to integrate seamlessly with modular switching devices in electrical panel assemblies. Module groups and auxiliary units are commonly deployed to expand the functional capabilities of standard control relays within industrial automation systems. Pricing, availability, and lead times are confirmed per enquiry through an RFQ.
- Function: Group module
- Number of NC main contacts: 0
- Number of main contacts NA: 0
- Tightening torque: 1.2 - 1.5 N·m
- Connection Capabilities: Solid 1 x 1 ... 10 mm²
- Rated voltage (U R ): 250 V AC
- Rated Control Supply Voltage (U s ): 250 V AC
- Rated current (I N ): 1 A
- Rated Frequency (f): 50 Hz
- RAL Number: RAL 7035 - Light grey
- Color: Grey
- RoHS Information: 2CCC005102D0201
- RoHS Statement: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20170426
- REACH Declaration: 2CCC005047D0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
More info
▲| Technical data | |
|---|---|
| Function | Group module |
| Number of NC main contacts | 0 |
| Number of main contacts NA | 0 |
| Tightening torque | 1.2 - 1.5 N·m |
| Accessory Type | Other |
| Connection Capabilities | Solid 1 x 1 ... 10 mm² |
| Flexible 2 x 2.5 mm² | |
| Flexible with Cable End 1 x 0.75 ... 6 mm² | |
| Flexible with Cable Lug 1 x 0.75 ... 6 mm² | |
| Electrical | |
| Rated voltage (UR) | 250 V AC |
| Rated Control Supply Voltage (Us) | 250 V AC |
| Rated current (IN) | 1 A |
| Rated Frequency (f) | 50 Hz |
| Design | |
| RAL Number | RAL 7035 - Light grey |
| Color | Grey |
| Material Compliance | |
| RoHS Information | 2CCC005102D0201 |
| RoHS Statement | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20170426 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20190425 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small equipment (no external size greater than 50cm) |
| CN8 | Business To Consumer |
| Environmental data | |
| room temperature | Operating -25...+55 °C |
| In stock -40...+70 °C | |
| Environmental information | 2CCC441012D0202 |
| Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens |
| IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. | |
| IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens | |
| dimensions | |
| Product width | 18 mm |
| Product height | 85 mm |
| Product depth | 58 mm |
| Product Net Weight | 59 g |
| Dimensional diagram | 9AKK107992A6185 |
| Order | |
| Packaging Unit Level 1 | Box 10 piece(s) |
| Gross Packaging Weight Level 1 | 666 g |
| E-Number (Norway) | 1404043 |
| Certificates and declarations (document number) | |
| Declaration of Conformity - CE | 2CCC005102D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6139 |
| VDE Certificate | VDE E29x_40040851 |
| Installation | |
| Instructions and manuals | 2CCC441005M0801 |
| Mounting type | DIN-Rail |
| Most Used Downloads | |
| Sheet | 2CCC441020C0201 |
| External classifications and standards | |
| ETIM 9 | EC000188 - Latching relay |
| ETIM 10 | EC000188 - Latching relay |
| Unspsc | 39122317 |
| eClass property | V11.0 : 27371692 |
| Item Classification Code | K |
| Reference standards | IEC/EN 60669-1 |
| IEC/EN 60669-2-2 | |
