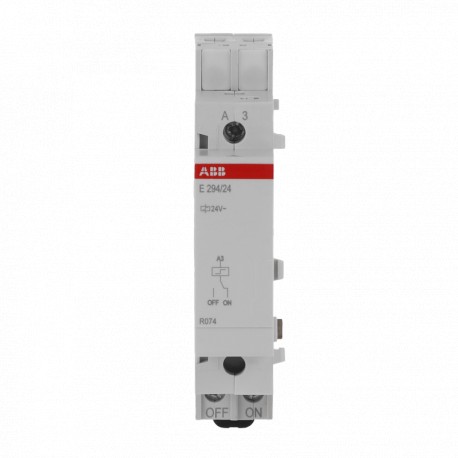

2TAZ312001R2043 ABB Mod.centralization, on-off E294/24 16A
2TAZ312001R2043
312001
ABB
1 Pcs.
Mod.centralization, on-off E294/24 16A
On-off centralization mod E294/24 16A
E294/24 Central on-off Control Module
Automation > Accessories/spare parts for switching relay
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Function | Mechanical for centralized control |
| Rated Control Circuit Voltage (Uc) | 24 V AC |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 |
| Tightening Torque | 1.2 - 1.5 N·m |
| Accessory Type | Other |
| Coil Consumption | Control Voltage V AC 24 V AC |
| Average Pull-in Value 50 Hz 0.684 A | |
| Connecting Capacity | Solid 1 x 1 ... 10 mm² |
| Flexible 2 x 2.5 mm² | |
| Flexible with Cable End 1 x 0.75 ... 6 mm² | |
| Flexible with Cable Lug 1 x 0.75 ... 6 mm² | |
| Electrical | |
| Rated Voltage (Ur) | 250 V AC |
| Rated Control Supply Voltage (Us) | 250 V AC |
| Rated Current (In) | 1 A |
| Rated Frequency (f) | 50 Hz |
| Design | |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 2CCC005102D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20170426 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20190425 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25...+55 °C |
| Storage -40...+70 °C | |
| Environmental Information | 2CCC441012D0202 |
| Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens |
| IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. | |
| IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens | |
| Dimensions | |
| Product Net Width | 18 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 58 mm |
| Product Net Weight | 110 g |
| Dimension Diagram | 9AKK107992A6184 |
| Ordering | |
| Package Level 1 Units | box 5 piece |
| Package Level 1 Gross Weight | 1189 g |
| E-Number (Finland) | 2712556 |
| E-Number (Norway) | 1404042 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CCC005102D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6139 |
| VDE Certificate | VDE E29x_40040851 |
| Installation | |
| Instructions and Manuals | 2CCC441005M0801 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC441020C0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000188 - Latching relay |
| ETIM 10 | EC000188 - Latching relay |
| eClass | V11.0 : 27371692 |
| Object Classification Code | K |
| Standards | IEC/EN 60669-1 |
| IEC/EN 60669-2-2 | |
