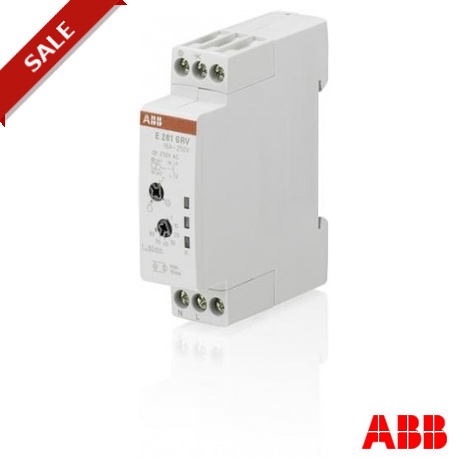

E261C-230 2CDE141000R0311 ABB E261C-230V Latching relay
E261C-230
2CDE141000R0311
ABB
1 Pcs.
Automation > Latching relay
E259-E260
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb E261C-230 is an electronic latching relay designed to manage electrical loads through momentary control impulses. Latching relays are widely applied in commercial and industrial automation to maintain switch positions without drawing continuous coil current. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-09-01
- RoHS Information: 2CDK440007K0201
- eClass: 7.0 27142306
- Product Net Width: 17.5 mm
- Product Net Height: 70 mm
- Product Net Depth: 58 mm
- Product Net Weight: 0.065 kg
- EAN: 4016779576024
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 22 mm
- Package Level 1 Height: 90 mm
- Package Level 1 Length: 67 mm
- Package Level 1 Gross Weight: 0.07 kg
- Declaration of Conformity - CE: 2CDK442004D0401
More info
▲The electronic latching relays guarantees maximum reliabality, life and noiseless operation. The 260 C version also allows centralized reset function (ON/OFF).
Ordering
- EAN:
- 4016779576024
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85364900
Dimensions
- Product Net Width:
- 17.5mm
- Product Net Height:
- 70mm
- Product Net Depth:
- 58mm
- Product Net Weight:
- 0.065kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 22 mm
- Package Level 1 Height:
- 90 mm
- Package Level 1 Length:
- 67 mm
- Package Level 1 Gross Weight:
- 0.07 kg
Environmental
- RoHS Status:
- Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-09-01
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CDK442004D0401
- RoHS Information:
- 2CDK440007K0201
Classifications
- Object Classification Code:
- Q
- ETIM 4:
- EC000188 - Latching relay
- ETIM 5:
- EC000188 - Latching relay
- eClass:
- 7.0 27142306
