View larger
Images are for illustrative purposes only. Please refer to data sheet for details

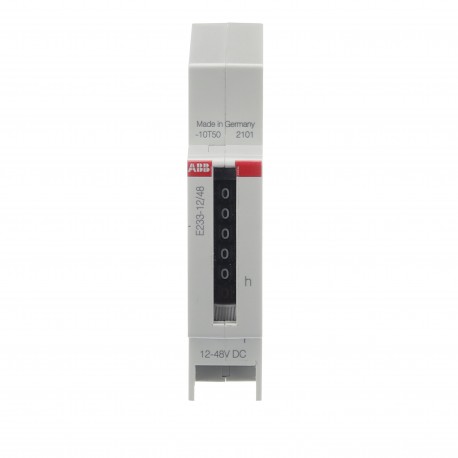

2CDE300010R1601 ABB E233-12/48 WORKING HOUR COUNTER
2CDE300010R1601
300010
ABB
1 Pcs.
E233-12/48 WORKING HOUR COUNTER
Hour meter E233-12/48
Automation > Hour meter
Timing, various DESTO
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Accuracy | Reading Accuracy Class 0,01 h |
| Electrical | |
| Rated Voltage (Ur) | 12 ... 48 V DC |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 0.02 W |
| Material Compliance | |
| RoHS Declaration | 2CDK440005K0202 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20170809 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 25da42bc-9a61-4d82-a73c-72c54df7c78e Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Environmental Information | 2CDU400019D0201 |
| Dimensions | |
| Width in Number of Modular Spacings | 1.0 |
| Product Net Width | 17.5 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 58 mm |
| Product Net Weight | 0.05 kg |
| Ordering | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Gross Weight | 0.6 kg |
| E-Number (Finland) | 6680131 |
| E-Number (Norway) | 8261091 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK443001D0403 |
| EU Data Act Compliance Declaration | Not applicable |
| Installation | |
| Instructions and Manuals | 2CSC400002D0208 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| External Classifications and Standards | |
| ETIM 9 | EC001641 - Hour meter |
| ETIM 10 | EC001641 - Hour meter |
| UNSPSC | 41111949 |
| eClass | V11.0 : 27142313 |
| IDEA Granular Category Code (IGCC) | 6132 >> Counters |
| Object Classification Code | P |
| Feature Name | Feature Value |
|---|---|
| Operation indication (EF004881) | Yes |
| Width (EF000008) | 17.5 mm |
| Height (EF000040) | 85 mm |
| Width in number of modular spacings (EF002950) | 1.0 |
