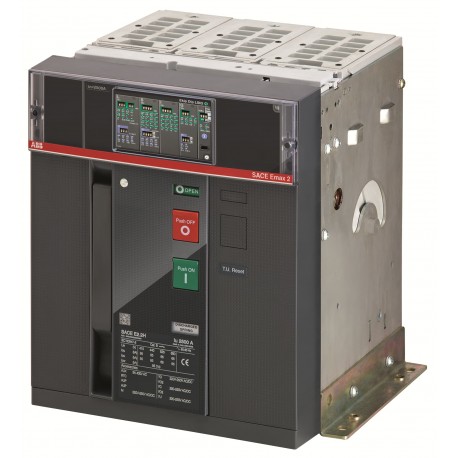

1SDA070903R1 ABB E2.2S 800 Ekip Dip LSIG 3p F HR
1SDA070903R1
070903
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA070903R1 ABB E2.2S 800 Ekip Dip LSIG 3p F HR is a frame circuit breaker designed for high-current electrical power distribution and industrial plant protection. Such units provide precise electronic trip unit oversight to manage electrical loads and isolate faults across main distribution switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108468A1902
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy
- Simplified SCIP: f0081f86-25d0-4513-981b-04fad578e53d Hungary
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z2SPEFBC000A000000XX
- EAN: 8015644747534
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1902 |
| 9AKK108468A1909 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy |
| Simplified SCIP | f0081f86-25d0-4513-981b-04fad578e53d Hungary |
| 4e167aa1-d6c1-4ea5-981e-df80abf0c898 Belgium | |
| 862cef58-6a3c-4fcd-b4f7-a8ab432edafa Spain | |
| e2c09d76-912d-4290-9ece-9a8f06c3ebe6 Hungary | |
| bb35fb2f-4717-4f3f-8483-c118bfc4429e Poland | |
| e19f9b8f-3237-4111-9cb0-0a61cb7c8395 Netherlands | |
| 14950267-1e47-4dfb-ad97-36a6bc09bff6 Croatia | |
| 8380f0fc-a1d8-465f-8b79-945b23b1b956 Germany | |
| 92c4ed76-2d99-46da-a0ce-9dcc8584b644 Czech Republic | |
| b2894ce1-26db-4de4-8ef1-bd69d99d4760 Greece | |
| 91fd7c70-e70b-4790-bda8-42ab66fb789a Sweden | |
| dd04cb55-4399-4eab-8a39-626f4c869ac3 Estonia | |
| 132efd74-d6eb-48ce-aac7-50ce9b882418 France | |
| ac8f8d2d-492c-4659-882a-9954c15d2337 Germany | |
| c20c7b1e-d48d-4142-97dd-3ba46353ed68 Germany | |
| f07b25e7-72f8-40e3-a44b-2239006f6ed3 Sweden | |
| be5ca152-6c42-4e4e-a5ce-84b23c891c06 Portugal | |
| 584320f4-f24f-4051-abfa-e93ca9ee643b Poland | |
| d5f3a47d-0254-4ead-8183-7eb652b8bd16 Bulgaria | |
| 264cd9af-0061-4225-98a3-1b8fbd61597e Germany | |
| dfa1c6d3-c7d6-4549-b78d-3d88383d40fc Poland | |
| aef4023a-ef03-4551-b196-9f5e3b331b34 Finland | |
| 90eba8cb-95ed-44ca-8a25-ba3ac7b1cc95 Denmark | |
| 328ac7d3-5955-4514-9ea2-943113c15b93 Germany | |
| 77cc956d-763c-4cee-9459-e5fc3d5d3df0 Belgium | |
| 013d776d-dfd7-4740-b02b-0f99208db12a Norway | |
| 3c4a679b-af49-4264-833d-7e014accb232 France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z2SPEFBC000A000000XX |
| EAN | 8015644747534 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 276 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 41 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 46 kg |
| Package Level 1 EAN | 8015644747534 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0083 |
| Technical | |
| Connecting Capacity | 600 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 34 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 66 kA | |
| (660 V AC) 66 kA | |
| (690 V AC) 66 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 85 kA |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 66 kA | |
| (525 V AC) 66 kA | |
| (690 V AC) 66 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001000R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
