View larger

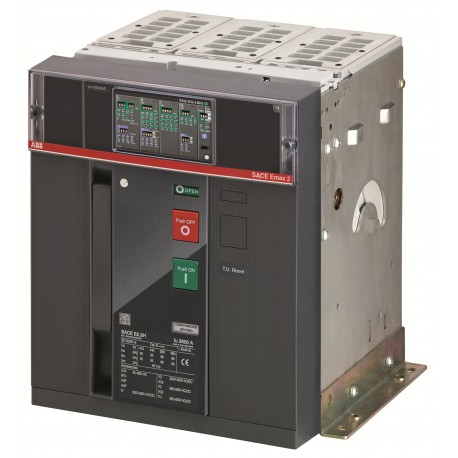

1SDA070902R1 ABB E2.2S 800 Ekip Dip LSI 3p F HR
1SDA070902R1
070902
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Air circuit breaker 1SDA070902R1 manufactured by Abb is utilized in industrial power distribution frameworks to protect high-voltage lines and critical machinery from electrical faults. These breakers provide essential load-switching and fault-clearing capabilities in heavy switchgear installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108468A1902
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: b729706a-75df-43a2-8c18-95e328426df1 Italy
- Simplified SCIP: 3c24425b-dcf0-4b81-94c3-d1a68355de19 Croatia
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z2SPEFBB000A000000XX
- EAN: 8015644747527
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1902 |
| 9AKK108468A1909 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b729706a-75df-43a2-8c18-95e328426df1 Italy |
| Simplified SCIP | 3c24425b-dcf0-4b81-94c3-d1a68355de19 Croatia |
| 906632ea-d65d-4df2-b961-9c86625854ab Belgium | |
| 9d3b108e-f9fa-461c-aa48-8663590b7f22 Germany | |
| 4787f7cb-1ce8-4389-baae-e2ecca73bf1b Poland | |
| 3e0951b9-e760-40d9-a43d-924cb52b4afc Poland | |
| 96c67ee8-d657-4b00-8abe-d6324324e620 Netherlands | |
| 477ff911-4a01-4efb-a4e4-f6baa5a3bca0 Sweden | |
| b9f18d75-4e6f-4016-9a52-32c655d11c5f Greece | |
| e66941b5-6fe0-420b-9240-0b698bbd4cfb Germany | |
| 24d0bcf1-1113-405e-8604-1d225fa7e3ba Norway | |
| fafbabfd-f243-4b3b-875d-baadd519dfa7 Bulgaria | |
| 66658812-2b35-4aa3-882b-2987202b0512 Denmark | |
| a4d31c0d-7fb0-4fa7-b483-5cbbc38bd018 Germany | |
| ca3d423a-fb90-4f80-8e71-51bf7e8719ce Czech Republic | |
| 4928b646-f3fa-4cc5-9420-67992fbe1f08 Portugal | |
| c5f30679-962c-46c3-bfda-15405c8d2feb Sweden | |
| 27cf40ae-3792-46e0-bf64-b27c2b1461ee Poland | |
| 642b11dc-299f-4b92-bd01-a17462f4ff86 France | |
| 486040cd-2444-49b6-9ca0-06517702e263 Estonia | |
| d08cb759-8310-457d-8372-18187135b04d Belgium | |
| 4a8ff4dd-a0df-4676-82f6-89ab6bfb93a0 France | |
| 5a417ba7-dbbf-4413-9aa8-4fb4deeef74e Hungary | |
| a05457e8-9ccb-4834-82f0-21981ef66f17 Spain | |
| 8c352018-5dbe-4c0a-987b-19e68ed04888 Germany | |
| fedfbb90-ea73-45a6-a193-3c154843f4ee Hungary | |
| ceebc6dd-0fa6-4592-b205-e7e2c0db2458 Germany | |
| 1247f49d-075e-4054-a468-9fbdba290f65 Finland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z2SPEFBB000A000000XX |
| EAN | 8015644747527 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 276 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 41 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 46 kg |
| Package Level 1 EAN | 8015644747527 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0083 |
| Technical | |
| Connecting Capacity | 600 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 34 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 66 kA | |
| (660 V AC) 66 kA | |
| (690 V AC) 66 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 85 kA |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 66 kA | |
| (525 V AC) 66 kA | |
| (690 V AC) 66 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001000R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
