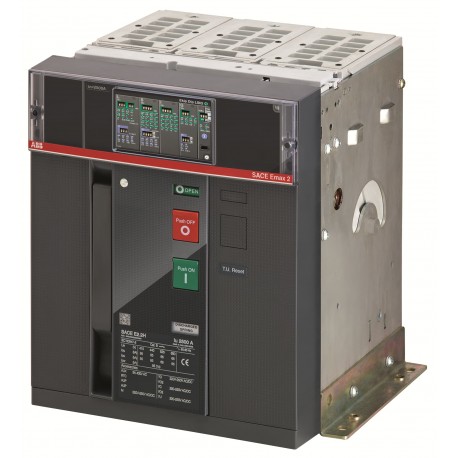

ABB 1SDA073629R1 1SDA073629R1 ABB E2.2S 250 Ekip Dip LSI 3p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073629R1 ABB E2.2S 250 Ekip Dip LSI 3p F HR

1SDA073629R1

073629

ABB

1 Pcs.

E2.2S 250 Ekip Dip LSI 3p F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2361
Environmental Product Declaration - EPD9AKK108468A1902
9AKK108468A1909
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 79.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP07dd075e-c53a-45b9-9cf0-598934975fa2 Italy
Simplified SCIP59688f6a-a620-4d39-8e64-e4112d8c7797 Estonia
947bc8cf-09ab-4983-bdf4-e16f388ba1c0 Spain
59688f6a-a620-4d39-8e64-e4112d8c7797 Estonia
947bc8cf-09ab-4983-bdf4-e16f388ba1c0 Spain
8183f74f-97ce-4ead-8b6a-37325d44edf6 Sweden
d14e9bc9-f348-4a1c-aaee-0c4ac3886469 Poland
ca7172ad-6543-4193-b511-50d889e084c6 Germany
1a855b15-1154-49aa-9c3a-4bcb0c0b40ee Sweden
4d9c9b30-ad3f-4529-a3c1-d173fb0928c9 France
a1a8a739-09f6-4fb2-9d39-3f4647f4a6c3 Poland
ebf4a87a-5b24-4f76-a512-aaf2cff2f37c France
be30111f-926c-4f46-9b0a-df7fa7214828 Hungary
ef47c7df-32d7-4c8d-90d3-aecf2b5875d5 Belgium
2c159b7e-5d60-4958-ba7c-1e7870205552 Germany
ebf4a87a-5b24-4f76-a512-aaf2cff2f37c France
eec31e21-1805-4d24-82dd-7d67d43a1f1c Germany
0534ce6f-3752-4610-a5ba-36658327c52d Denmark
c0e4c205-d804-4783-95e4-b405c0a46cd4 Finland
788f7267-ea0e-4cf5-9b15-933d6b45ea5c Germany
c4206823-cf8e-4d8b-9989-1e7dbfe666b7 Bulgaria
d95ab188-bee7-40b1-bb83-047e7bfc8b00 Belgium
adee842f-60bd-4d70-9e51-d50e3b80021d Norway
971beef6-e84c-48f9-9aba-7856edaa5fe1 Germany
8183f74f-97ce-4ead-8b6a-37325d44edf6 Sweden
a2a8be78-132d-457e-adf4-fe600cd923f8 Croatia
788f7267-ea0e-4cf5-9b15-933d6b45ea5c Germany
d95ab188-bee7-40b1-bb83-047e7bfc8b00 Belgium
0534ce6f-3752-4610-a5ba-36658327c52d Denmark
be30111f-926c-4f46-9b0a-df7fa7214828 Hungary
3e4c35c1-c728-491f-bd6c-fe2d0edb91d2 Poland
eed6a20c-651e-4623-af20-2850ed17acf8 Greece
d14e9bc9-f348-4a1c-aaee-0c4ac3886469 Poland
e49c2815-fc3f-4495-95a6-6d1c5678629d Czech Republic
3e4c35c1-c728-491f-bd6c-fe2d0edb91d2 Poland
39062923-174e-4839-99c1-edc9485a59b8 Netherlands
1a855b15-1154-49aa-9c3a-4bcb0c0b40ee Sweden
ca7172ad-6543-4193-b511-50d889e084c6 Germany
b11b7986-1262-4ee7-b44e-7ac84df0bbed Hungary
2c159b7e-5d60-4958-ba7c-1e7870205552 Germany
e49c2815-fc3f-4495-95a6-6d1c5678629d Czech Republic
b11b7986-1262-4ee7-b44e-7ac84df0bbed Hungary
c4206823-cf8e-4d8b-9989-1e7dbfe666b7 Bulgaria
adee842f-60bd-4d70-9e51-d50e3b80021d Norway
4d9c9b30-ad3f-4529-a3c1-d173fb0928c9 France
971beef6-e84c-48f9-9aba-7856edaa5fe1 Germany
c0e4c205-d804-4783-95e4-b405c0a46cd4 Finland
c7b057dc-f258-461d-8ea4-02876272ed96 Portugal
eec31e21-1805-4d24-82dd-7d67d43a1f1c Germany
a2a8be78-132d-457e-adf4-fe600cd923f8 Croatia
39062923-174e-4839-99c1-edc9485a59b8 Netherlands
c7b057dc-f258-461d-8ea4-02876272ed96 Portugal
eed6a20c-651e-4623-af20-2850ed17acf8 Greece
a1a8a739-09f6-4fb2-9d39-3f4647f4a6c3 Poland
ef47c7df-32d7-4c8d-90d3-aecf2b5875d5 Belgium
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZ2SMECBB000A000000XX
EAN8015644775421
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width276 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight41 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight46 kg
Package Level 1 EAN8015644775421
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss50 W
Rated Current (In)250 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 66 kA
(660 V AC) 66 kA
(690 V AC) 66 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 66 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 66 kA
(525 V AC) 66 kA
(690 V AC) 66 kA
Rated Uninterrupted Current (Iu)250 A
Rated Voltage (Ur)690 V
ReleaseEkip Dip LSI
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE2.2
Suitable for IT NetworksYes, 690V
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5902
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4926 >> Air circuit breakers
Object Classification CodeQ
UNSPSC39121615
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
