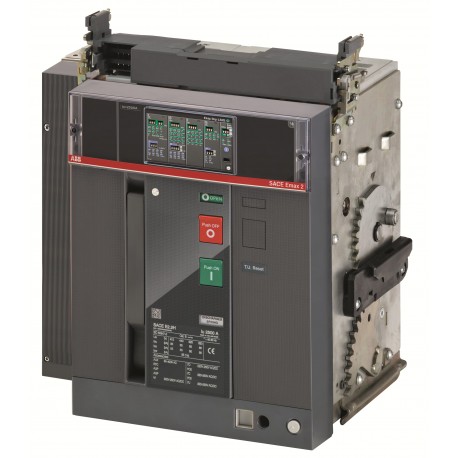

1SDA072983R1 ABB E2.2S 1600 Ekip Dip LSIG 4p WMP
1SDA072983R1
072983
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA072983R1 ABB E2.2S 1600 Ekip Dip LSIG 4p WMP is an advanced air circuit breaker engineered to manage and protect heavy electrical infrastructure. Power distribution engineers rely on these high-capacity protective devices to isolate faults and protect transformers, generators, and large electrical grids. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108468A1902
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: e7fed574-7e4c-407d-8727-9c64c295f1db Italy
- Simplified SCIP: c67f26f0-55dc-471d-b045-81719704a6e0 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZBSSEJAC000A000000XX
- EAN: 8015644768331
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1902 |
| 9AKK108468A1909 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | e7fed574-7e4c-407d-8727-9c64c295f1db Italy |
| Simplified SCIP | c67f26f0-55dc-471d-b045-81719704a6e0 Germany |
| 0af2cfa3-15a6-40a9-aaeb-518c01e1d6c2 Spain | |
| 39c1874e-37fb-46a9-bb17-8a43ef604926 Belgium | |
| ef874c67-0071-4b5a-830f-c5c3d194939e France | |
| 81dff1d0-292b-400f-a4a7-22e179dddaac Hungary | |
| b64104d4-c4ef-4239-87c8-84e4dea026de France | |
| 9734f0c1-87e5-4a3a-b329-13025f63acb6 Norway | |
| 26346eb6-57db-41b5-bf40-8d329b4b63d2 Finland | |
| 22ab5156-d579-4f10-9b01-a5b5fc61cfb3 Greece | |
| e967fd04-89b9-4d56-afe1-243506e55ec3 Netherlands | |
| 747356d9-8ef6-4800-8531-86aa8e7c7184 Estonia | |
| 049a622e-549e-4ae8-9e49-835d2392d22b Germany | |
| 68f38bec-ae52-470f-9a0e-4aac3aaba751 Denmark | |
| 5fb331bd-65f4-4c32-b6ec-53cb9136a6f3 Germany | |
| 265ca643-5130-4e4c-9a44-5d760ef243f8 Belgium | |
| 763beba7-11f1-4591-addf-c519ac22dd35 Sweden | |
| 2a487862-633b-4dc8-89da-ec7e075f8c31 Germany | |
| 9f0d14d2-f1a7-422f-960a-cd1d71e9027b Germany | |
| e97248b9-ff04-49a6-9db6-c85b24fa5715 Croatia | |
| 06c22c2b-b001-464c-aaba-5447fe5fe87a Poland | |
| 43a99071-5b45-4426-9bbb-f7efb759d9f3 Hungary | |
| 917e9505-d4c6-467c-b636-f74f4223391f Czech Republic | |
| be1b24c8-b3b6-465c-ad31-21903b903823 Poland | |
| ceefb118-0a40-44c1-b748-37a42ad223a3 Poland | |
| 7eb809d3-844b-4eb6-981b-8878f6dae449 Sweden | |
| 19ad5206-c680-4bdf-8d76-6fe23a7ab1ee Bulgaria | |
| d14c10de-2da0-4dff-97e5-1388686c0abc Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZBSSEJAC000A000000XX |
| EAN | 8015644768331 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 407 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 55 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 60 kg |
| Package Level 1 EAN | 8015644768331 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0432 |
| Technical | |
| Connecting Capacity | 1200 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 12000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 288 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 66 kA | |
| (660 V AC) 66 kA | |
| (690 V AC) 66 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 85 kA |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 66 kA | |
| (525 V AC) 66 kA | |
| (690 V AC) 66 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 690V |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001000R0102 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
