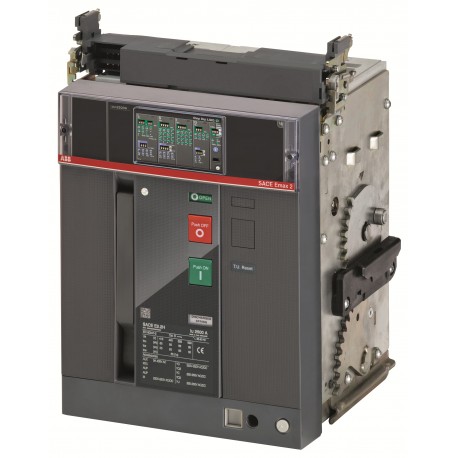

ABB 1SDA072311R1 1SDA072311R1 ABB E2.2S 1250 Ekip Dip LI 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA072311R1 ABB E2.2S 1250 Ekip Dip LI 3p WMP

1SDA072311R1

072311

ABB

1 Pcs.

E2.2S 1250 Ekip Dip LI 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2361
Environmental Product Declaration - EPD9AKK108468A1902
9AKK108468A1909
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 79.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPcecf6313-a3b8-47d5-8f0c-91719db6162d Italy
Simplified SCIP75e3204f-458f-40df-a986-0c17b1d3a0c3 Germany
6dd55f93-f0b0-48e8-a40d-40c9fe03d048 Germany
83852f37-832e-4f38-ae87-d6f9ca669008 Denmark
33674d7c-6191-4cd7-baa3-c31bfb3f2c4c Croatia
57963a8b-dec1-4302-9244-b94b87ae7f8e Germany
d8d080dc-cd90-495c-b711-9d07f5e02034 Germany
eb1d252e-d603-465c-a839-1d042542dcbf France
59ca6b0f-6160-4428-b0d0-b4cdcc957f1b Finland
8c8eb0da-9439-4c81-98b6-8cd409c8b8a4 Greece
724f36d3-2ded-4b5b-a375-49676d80bed0 France
f42d2bb2-0438-4657-949a-d1a0d353dae2 Belgium
58bdb3b8-75e7-4aa8-809f-30cb7bec7e61 Germany
9649749f-1039-47bb-a5e3-793248a9c2ce Estonia
856ea8e2-b293-4a18-8a63-60a0001c9eab Netherlands
4332ee13-f231-4d61-93b4-cbcd758a3172 Sweden
8d361e57-fea6-48ba-8f01-46b69327fe5d Poland
ccf6629d-b697-44ec-bb1f-8f0faea1eac3 Norway
3e360c23-ec53-4de8-a7bc-364e64837232 Hungary
0e52d25c-a063-4e2f-a013-ac818ee44275 Poland
47d33ebc-5ce1-4cea-8a53-e475450a7a02 Poland
d3b64048-417e-47e5-86ec-2a2cfb89b75d Czech Republic
d6e8e01d-e580-4625-89b6-75b36617c3d2 Sweden
5a4e5664-d775-44b2-8f80-0b697cc72d91 Bulgaria
dffc7f52-110d-4ac7-9277-8724ff4f9df3 Portugal
6a55a72f-16fd-4b9e-9279-1684eb4d3d89 Belgium
bbbed2cb-2c77-4fbd-b040-03695444f1fd Spain
79f8e4c2-def9-407a-99c7-b2832eaee971 Hungary
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZ2SREHAA000A000000XX
EAN8015644761615
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width317 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight48 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight53 kg
Package Level 1 EAN8015644761615
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
CAD Dimensional Drawing1SDH001252R0431
Technical
Connecting Capacity1200 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss176 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 66 kA
(660 V AC) 66 kA
(690 V AC) 66 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 66 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 66 kA
(525 V AC) 66 kA
(690 V AC) 66 kA
Rated Uninterrupted Current (Iu)1250 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip Dip LI
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE2.2
Suitable for IT NetworksYes, 690V
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5902
EU Data Act Compliance Declaration1SDH002560A1001
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001000R0102
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4926 >> Air circuit breakers
Object Classification CodeQ
UNSPSC39121615
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
