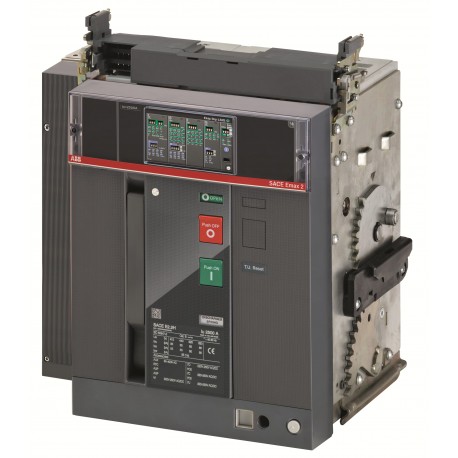

1SDA072912R1 ABB E2.2S 1000 Ekip Dip LSI 4p WMP
1SDA072912R1
072912
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA072912R1 E2.2S air circuit breaker is designed for robust electrical distribution networks, providing dependable fault interruption and selectivity in commercial buildings. Withdrawable circuit breakers facilitate straightforward rack-in and rack-out procedures for routine maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108468A1902
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy
- Simplified SCIP: ff70773e-528d-4d08-be5a-2e21e925e578 Sweden
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZBSQEGAB000A000000XX
- EAN: 8015644767624
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1902 |
| 9AKK108468A1909 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy |
| Simplified SCIP | ff70773e-528d-4d08-be5a-2e21e925e578 Sweden |
| cc4c3f9c-0c44-4848-a0f4-c20a8975b5a4 Greece | |
| 35ccf886-6ce4-4642-81fd-e42db108fd74 Belgium | |
| 67d36471-a14f-4d6e-a244-bf19404bb150 Germany | |
| a29ae04c-56b1-4b67-ae16-5c2ab32296ac Hungary | |
| 3f9adc45-8546-40bd-a975-9d9692288f3b Norway | |
| a1e59a2d-56d6-407d-af5b-3e81474829a8 Denmark | |
| 2f0cbaf4-c893-4ee4-b501-76b0617e58ef Croatia | |
| d409ce85-925d-4825-a408-9be7522ac8d4 Poland | |
| ce3bf93e-e3a1-46e2-adde-336ca5796134 Spain | |
| b0aa8b9d-d043-4ea2-a22c-9e4f906fe484 France | |
| d026dc9f-856c-4a0b-b7c2-c5d2a57ef2fc Bulgaria | |
| e9ecbeb2-6523-47fc-b001-efa683f46492 Estonia | |
| d68a03e3-7859-4873-852a-d5ad4db43e89 Poland | |
| 8a2559d3-8b3e-4103-9332-0f89bc502082 Hungary | |
| e89ae1ee-db99-448b-9636-a5f831772bc7 Germany | |
| 81961b9a-c097-4207-83e3-3169be9a70ad Sweden | |
| 014de012-62bd-430f-aec7-63517b6ead7e Portugal | |
| e834a67f-a9c2-4b49-a291-f8acb38f0ca8 Germany | |
| 423a67c5-50df-416c-8ed9-bfa0f1c7680a Netherlands | |
| c025fd99-5a5d-44b1-aa4f-c0ff08d69888 Poland | |
| a17f596b-1fe7-4a7d-b6ce-d3ae0df6bfff Czech Republic | |
| 2409c16a-cf7c-43f2-bfcd-0c6f95d43b87 Germany | |
| 55217359-8390-4ea3-89d7-99a11f6cf600 Finland | |
| f02d90e8-6d24-4b3a-907c-2282dbf54651 Belgium | |
| 677a8dd1-b174-40b6-b340-da9c93e3853e Germany | |
| 0b31daa9-d562-48ce-9b18-c021bca6482f France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZBSQEGAB000A000000XX |
| EAN | 8015644767624 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 407 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 55 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 60 kg |
| Package Level 1 EAN | 8015644767624 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0432 |
| Technical | |
| Connecting Capacity | 600 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 113 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 66 kA | |
| (660 V AC) 66 kA | |
| (690 V AC) 66 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 85 kA |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 66 kA | |
| (525 V AC) 66 kA | |
| (690 V AC) 66 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 690V |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001000R0102 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
