Images are for illustrative purposes only. Please refer to data sheet for details

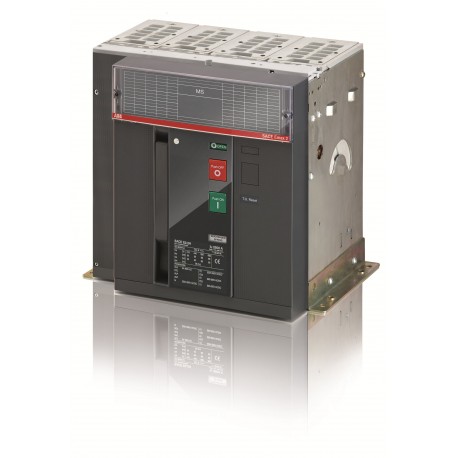

1SDA073441R1 ABB E2.2N/MS 800 4p F HR
1SDA073441R1
073441
ABB
1 Pcs.
E2.2N/MS 800 4p F HR
Connectors > Switch disconnector
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1902 |
| 9AKK108468A1909 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 47e7b97c-b709-4ebb-bd94-9436edd31378 Italy |
| Simplified SCIP | 445a8438-0417-4718-bb90-9485b5d4e126 Germany |
| 801aa4f4-8943-4305-9d6a-df40bdb440c2 Netherlands | |
| 64bf6b15-4a7a-4872-81a0-5ccce5867fef Netherlands | |
| 175a7eaf-92cf-43da-989d-eab2a14b2740 Estonia | |
| 6194c9d3-e8eb-4163-9c6f-ce661a99db5f Norway | |
| eebac2f4-552f-4d54-a7e6-f5e2356b0409 Spain | |
| 24444b3c-a114-459f-ac4f-1ade35715f6e Netherlands | |
| 0ad19142-25ce-4cad-ba29-2060f0a89e21 Greece | |
| e936bd35-de17-4284-ac21-d68d86566048 Sweden | |
| 9bf33a45-e97f-453a-8383-2672c25044ce Poland | |
| ce01f8e7-cc7c-455b-8883-0811309e1d25 France | |
| e873864e-0335-4d2e-ae98-71f47422ba90 Sweden | |
| 8a2cebdc-3997-4fab-b5f1-1c629fded0ae Germany | |
| 32200de1-b3fb-48f4-8254-0f66f1bba273 Germany | |
| da8c0bbc-92f9-4624-ae89-3e17fb7c33d9 France | |
| db662fa1-a161-4441-aa7a-fdbe94650159 Netherlands | |
| c8436081-0b86-4e91-b239-517c25d05508 Germany | |
| a65d2209-9580-46d3-9387-9269ad305e3b Denmark | |
| 9bc61dc2-d3e5-4fca-b21e-5c7baa5214d2 Germany | |
| e9aef22c-7929-46bc-b68e-e1422cd3cc75 Croatia | |
| 0a46050f-e5b1-4286-9bc4-89a83393c772 Czech Republic | |
| fd33b69b-b52a-4d5f-bfac-e5675bda885b Poland | |
| 28decd98-0751-4f01-8f51-5ca736e6729d Portugal | |
| 57bfeae6-4886-4742-b0c6-bc788a6bf23e Bulgaria | |
| de98e562-03ed-4842-b05c-ab8bad3f8bea Finland | |
| fa09b0fa-fc00-4eeb-aa55-7f67c1fe7efa Netherlands | |
| dd1ad99f-cc0b-4f47-a69d-9f8e25a1a33a Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZBNP00B00000000000XX |
| EAN | 8015644772918 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 366 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 53 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 58 kg |
| Package Level 1 EAN | 8015644772918 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0123 |
| Technical | |
| Connecting Capacity | 600 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 34 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kA |
| for 3 s 50 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001000R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 800 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 800 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 800 A |
| Rated short-time withstand current lcw (EF007050) | 66 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
