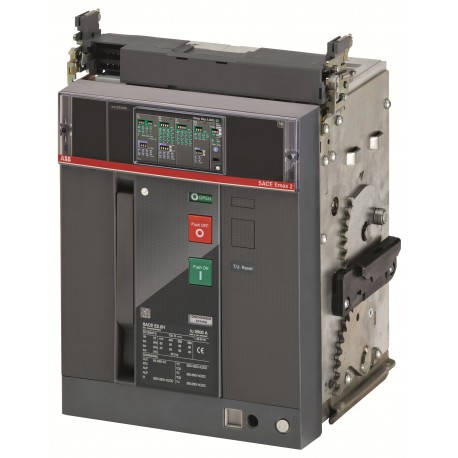

1SDA072271R1 ABB E2.2N 1000 Ekip Dip LI 3p WMP
1SDA072271R1
072271
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB E2.2N 1000 Ekip Dip LI 3p WMP is an air circuit breaker engineered to protect main electrical distribution systems and heavy industrial assets against overloads and short circuits.
Circuit breakers of this scale interrupt high fault currents to safeguard downstream electrical infrastructure and personnel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108468A1902
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy
- Simplified SCIP: 7883d40c-2165-40e5-9ef4-c2c916e29775 Hungary
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z2NQEGAA000A000000XX
- EAN: 8015644761219
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1902 |
| 9AKK108468A1909 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy |
| Simplified SCIP | 7883d40c-2165-40e5-9ef4-c2c916e29775 Hungary |
| 5d7134df-a956-4c11-befa-c348f09cf54a Netherlands | |
| 5439bba6-5942-43d2-95d4-f53f958ee2e2 Finland | |
| 15b78aec-dc99-404a-a007-c6e78fff3eea Czech Republic | |
| 87b94d02-eb09-47ba-8ca6-dfcf9132791a Croatia | |
| 291193c4-1e90-4ced-89c9-e2aee0f7b77b Hungary | |
| 824e5f2a-71d6-4138-a59f-ba91e80b6390 Belgium | |
| ef086a94-fc71-45a6-b90a-ff8141d67274 Spain | |
| 7c57aeff-5013-4bfc-a43a-7bc71e1ca89f France | |
| 0fdfd8e2-0836-435d-aada-b0c812bf8a38 Portugal | |
| 8c17d3bb-1d5d-4bdf-a686-e40ad8fbc205 France | |
| 9a470eea-ab37-4361-910e-8560e6be92ba Germany | |
| d1e02665-8438-4d85-ba49-f4dc516b6937 Sweden | |
| 8cdebf87-aa8b-4045-a748-f994a9afa0b9 Germany | |
| d5ae2084-861f-4c15-96c0-5e6c9c6be5a5 Estonia | |
| 08a1a34a-3abe-48bb-b904-7b58e64baf0f Greece | |
| abcac033-afd3-46d1-8d6c-673731c90730 Bulgaria | |
| df8d4a52-b75f-4037-8c46-5f459b17c479 Poland | |
| c149aa3d-4556-4267-8032-65dc59793059 Sweden | |
| 841f0148-96b0-43cc-9a22-0e19f451f9c2 Germany | |
| 7f2212d3-48da-4c5d-a0b9-43e5b02032b3 Denmark | |
| a4bfd1cb-2a9e-412a-8aa6-62277e69c3c0 Germany | |
| 47866422-ecfc-4ad4-85ec-de6d46e8c8c1 Norway | |
| cc8ffe4c-3a3a-4c67-a796-4d2306050c04 Belgium | |
| 3e14d416-53b1-4750-bb62-5d6251864139 Poland | |
| 421274d8-99d5-48e1-9d4a-4895aca856ea Germany | |
| 8d6fc85c-7665-4e5c-b672-06a84c4c891d Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z2NQEGAA000A000000XX |
| EAN | 8015644761219 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 317 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 48 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 53 kg |
| Package Level 1 EAN | 8015644761219 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0431 |
| Technical | |
| Connecting Capacity | 600 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 113 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 66 kA |
| (230 V AC) 66 kA | |
| (380 V AC) 66 kA | |
| (400 V AC) 66 kA | |
| (415 V AC) 66 kA | |
| (440 V AC) 66 kA | |
| (500 V AC) 66 kA | |
| (660 V AC) 66 kA | |
| (690 V AC) 66 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 66 kA |
| (415 V AC) 66 kA | |
| (440 V AC) 66 kA | |
| (500 V AC) 66 kA | |
| (525 V AC) 66 kA | |
| (690 V AC) 66 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 690V |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001000R0102 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
