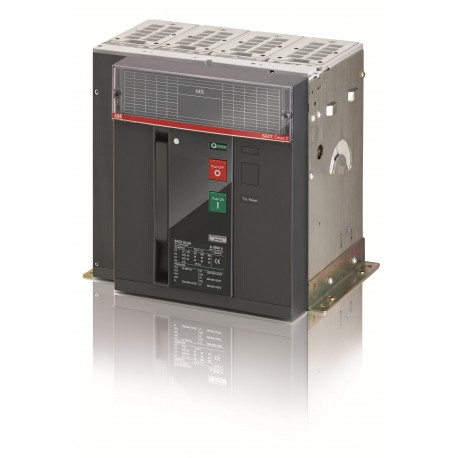

ABB 1SDA073446R1 1SDA073446R1 ABB E2.2H/MS 1250 4p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073446R1 ABB E2.2H/MS 1250 4p F HR

1SDA073446R1

073446

ABB

1 Pcs.

E2.2H/MS 1250 4p F HR

Connectors > Switch disconnector
E2.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB E2.2H/MS 1250 4p F HR is a frame-mounted switch-disconnector engineered for high-amperage commercial and industrial power distribution networks. Devices in this category handle critical circuit interruption and load isolation tasks within switchgear assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 79.1 %
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • End of Life Instructions: 9AKK108468A2361
  • Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Product Declaration - EPD: 9AKK108468A1902
  • Environmental Information: 9AKK108467A6707
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Order Code US and Canada: ZBHR00B00000000000XX
  • EAN: 8015644772963
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 366 mm

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 79.1 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2361
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108468A1902
9AKK108468A1909
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
Order Code US and CanadaZBHR00B00000000000XX
EAN8015644772963
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width366 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight53 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight58 kg
Package Level 1 EAN8015644772963
Additional Information
Current TypeAC
Electrical DurabilityUe =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu])100 %
Number of Poles4
Power Loss83 W
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
Rated Current (In)1250 A
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 85 kA
for 3 s 66 kA
Rated Uninterrupted Current (Iu)1250 A
Recommended Screw DriverMain Circuit M12
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE2.2
Terminal Connection TypeRear flat Horizontal
Terminal TypeBolt
Tightening Torque70 N·m
VersionF
CAD Dimensional Drawing1SDH001252R0123
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5902
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001000R0100
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
Classifications
ETIM 7EC000216 - Switch disconnector
ETIM 8EC000216 - Switch disconnector
ETIM 9EC000216 - Switch disconnector (low voltage)
IDEA Granular Category Code (IGCC)5293 >> Switch disconnector
Object Classification CodeQ
UNSPSC39122233
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
