> ABB > Rack "Megamax-Emax" > E2.2 > 072893

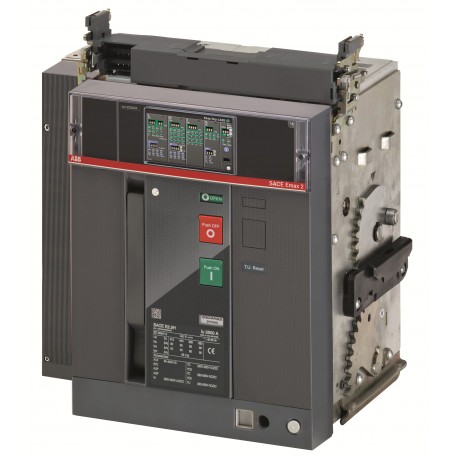

ABB 1SDA072893R1 1SDA072893R1 ABB E2.2H 800 Ekip Dip LSIG 4p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA072893R1 ABB E2.2H 800 Ekip Dip LSIG 4p WMP

1SDA072893R1

072893

ABB

1 Pcs.

E2.2H 800 Ekip Dip LSIG 4p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2361
Environmental Product Declaration - EPD9AKK108468A1902
9AKK108468A1909
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 79.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPb4baf257-5699-4a2c-988f-2aef2618e64b Italy
Simplified SCIP30173543-35bc-4076-8e49-161faaab9386 Sweden
1764147b-c922-40af-b8e5-1d0caa2e97a0 France
1f31c562-bb55-4e80-a2f3-2c03a9a11eee Poland
51005da4-10dd-40f0-b2bf-ba0f2bc7ba6c Germany
03f3fba0-ffef-4d96-ab87-2571ec83f639 Denmark
6c600a68-4be2-461e-a919-88b32ac1997e Bulgaria
1ae6931e-fe55-4f90-93bd-0b7b122a19bb Belgium
3818bda6-4e63-4d54-9221-b0da2d8bc2ca Belgium
4774f2dd-259c-41c7-9e4e-d9bb7ca9a581 Norway
984ee084-6b6f-40c7-b2fa-df1446620ae2 Germany
dd668d8a-f7a0-4eae-ad45-90b28345eb62 Germany
64d238fe-fc0a-4f0c-a10a-5d499b04fe68 Greece
82f2ef73-97d2-4b0d-b673-5c4601d0f415 Hungary
03f3fba0-ffef-4d96-ab87-2571ec83f639 Denmark
986c3c18-f824-4df1-b249-6c42a72bb0bb Poland
30173543-35bc-4076-8e49-161faaab9386 Sweden
dd668d8a-f7a0-4eae-ad45-90b28345eb62 Germany
1f31c562-bb55-4e80-a2f3-2c03a9a11eee Poland
bc686807-997d-46cb-afd8-4144d94aaf05 Czech Republic
3818bda6-4e63-4d54-9221-b0da2d8bc2ca Belgium
84c7d18e-0977-4204-a1a9-e1282a5afdb6 Finland
969c29ac-bbc5-46e8-bbad-ddccb342a523 Croatia
984ee084-6b6f-40c7-b2fa-df1446620ae2 Germany
986c3c18-f824-4df1-b249-6c42a72bb0bb Poland
794dd4f2-6a85-40b5-a3a1-3b679c805e7c Netherlands
8297aaab-c4af-4d42-81d2-ceb3b1029ce9 Poland
82ad4698-bf42-4c68-86aa-7a2d796306d1 Portugal
64d238fe-fc0a-4f0c-a10a-5d499b04fe68 Greece
84c7d18e-0977-4204-a1a9-e1282a5afdb6 Finland
82ad4698-bf42-4c68-86aa-7a2d796306d1 Portugal
51005da4-10dd-40f0-b2bf-ba0f2bc7ba6c Germany
794dd4f2-6a85-40b5-a3a1-3b679c805e7c Netherlands
4774f2dd-259c-41c7-9e4e-d9bb7ca9a581 Norway
1764147b-c922-40af-b8e5-1d0caa2e97a0 France
8bdd4c9b-4baf-4cb3-916f-a50d696707e8 Hungary
969c29ac-bbc5-46e8-bbad-ddccb342a523 Croatia
6710661a-d3c6-4ab6-a439-ccb64d7c4aff Germany
56d2fc65-9b41-4dcf-aa09-20499465afad Sweden
6c600a68-4be2-461e-a919-88b32ac1997e Bulgaria
ab63cc8f-f6c0-45e9-8e7f-6cb98b1fd1a9 Germany
ab63cc8f-f6c0-45e9-8e7f-6cb98b1fd1a9 Germany
82f2ef73-97d2-4b0d-b673-5c4601d0f415 Hungary
7af4afbe-f4d4-4d81-bbe2-2d236ac48177 France
549e1c40-231c-4358-a823-b2e1f97ad633 Spain
1ae6931e-fe55-4f90-93bd-0b7b122a19bb Belgium
8bdd4c9b-4baf-4cb3-916f-a50d696707e8 Hungary
bc686807-997d-46cb-afd8-4144d94aaf05 Czech Republic
1c4eba8a-ade4-4843-80b3-86356c26e63e Estonia
1c4eba8a-ade4-4843-80b3-86356c26e63e Estonia
7af4afbe-f4d4-4d81-bbe2-2d236ac48177 France
8297aaab-c4af-4d42-81d2-ceb3b1029ce9 Poland
56d2fc65-9b41-4dcf-aa09-20499465afad Sweden
6710661a-d3c6-4ab6-a439-ccb64d7c4aff Germany
549e1c40-231c-4358-a823-b2e1f97ad633 Spain
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZBHPEFAC000A000000XX
EAN8015644767433
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width407 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight55 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight60 kg
Package Level 1 EAN8015644767433
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
CAD Dimensional Drawing1SDH001252R0432
Technical
Connecting Capacity600 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu])100 %
Number of Poles4P
Power Loss72 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 85 kA
for 3 s 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 85 kA
(690 V AC) 85 kA
Rated Uninterrupted Current (Iu)800 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip Dip LSIG
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE2.2
Suitable for IT NetworksYes, 690V
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5902
EU Data Act Compliance Declaration1SDH002560A1001
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001000R0102
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4926 >> Air circuit breakers
Object Classification CodeQ
UNSPSC39121615
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA072893R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 800 A
Rated voltage (EF003977) 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) 100 kA
Overload release current setting (EF002336) 320.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 480.0 A
Adjustment range undelayed short-circuit release (EF007131) 1200.0 A
Integrated earth fault protection (EF007296) Yes
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30
