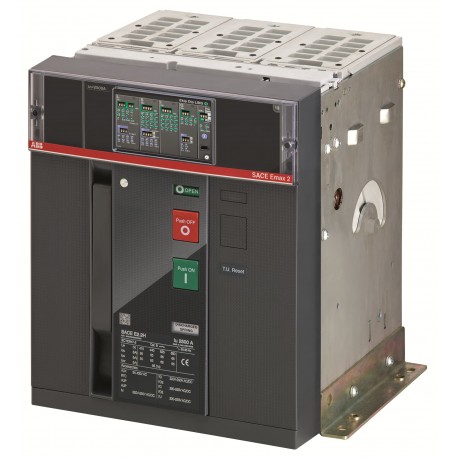

1SDA070913R1 ABB E2.2H 800 Ekip Dip LSIG 3p F HR
1SDA070913R1
070913
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This product is an ABB E2.2H 800 Ekip Dip LSIG 3p F HR air circuit breaker, built for high-capacity electrical distribution and selective fault clearing. Electrical engineers integrate these robust units into main switchgear lines to protect industrial networks from overloads. Verified product parameters are detailed below.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108468A1902
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 019c1326-737e-4c92-86e9-3954f393c58f Italy
- Simplified SCIP: 4e3d89b0-415c-4bf9-a27c-cf799bb317dc Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z2HPEFBC000A000000XX
- EAN: 8015644747633
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1902 |
| 9AKK108468A1909 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 019c1326-737e-4c92-86e9-3954f393c58f Italy |
| Simplified SCIP | 4e3d89b0-415c-4bf9-a27c-cf799bb317dc Germany |
| c6e8a02d-c1fb-45f7-8af0-a9f67ab770b7 Hungary | |
| e40f272e-008c-4b3a-8543-b9f4911ea8db Norway | |
| 7ac855b6-a969-41cd-835b-51a7d14d95dd Poland | |
| d733475f-5410-47c4-8015-3c266a6de835 Greece | |
| 0e6fb7f1-878d-4916-98bd-1c340992bbc3 France | |
| ca7088eb-895b-4806-b920-69a24fa3b72a Finland | |
| c880dd85-67c4-43a4-8f3f-3cb097d2b60f Netherlands | |
| 509e8cc2-a19a-4799-8bcd-a7e832534fd6 Belgium | |
| 257c1e1b-af83-45a6-9c15-669e4bbadd3f Sweden | |
| e6cce25c-7136-44b7-9665-e1637b2a84d5 Estonia | |
| 746f9f22-77d0-4290-9ff1-e4e1cab6af60 Germany | |
| d837db3d-5ac5-4faa-9ab0-2710ab4a9c3e Germany | |
| 4082fc64-55ec-455b-bcdc-baa6a632d00a Croatia | |
| cd2f723d-f1e8-4dd2-a3db-da98f76746af Bulgaria | |
| 859ec19c-ca1b-444f-9f32-544606a5ee1e Denmark | |
| 6756e496-25b0-49fd-afb9-04f7760bfa90 Germany | |
| 9a644021-ec31-44bf-91c3-67e18f0fecb4 Germany | |
| 72becd04-6521-4ad7-8392-211e56698752 Spain | |
| 5618f2a5-071a-4b03-a6f6-1a794f09d929 Belgium | |
| 38b6f5bf-fa13-4026-b50f-2c1bfba5326b France | |
| 42a42bb5-4bcb-4880-88e1-f86ee9f33b5a Sweden | |
| bfd2ed14-0dd6-414f-aa32-0988824620f9 Portugal | |
| 9b7c9202-88cf-4cff-a259-56e447020b06 Poland | |
| 4ad655f9-a4d1-4b59-b75a-cb2817c9704a Poland | |
| 2fba534e-47b3-41b9-aa1a-1ba16e58f51f Hungary | |
| b3d52e76-0f7f-4442-a468-9e08befbe998 Czech Republic | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z2HPEFBC000A000000XX |
| EAN | 8015644747633 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 276 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 41 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 46 kg |
| Package Level 1 EAN | 8015644747633 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0083 |
| Technical | |
| Connecting Capacity | 600 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 34 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (660 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 85 kA |
| for 3 s 66 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 100 kA |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001000R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
