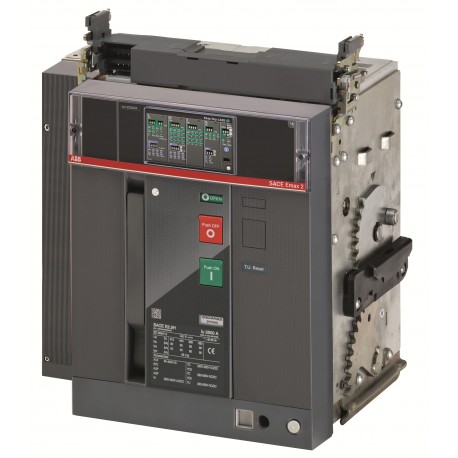

1SDA072891R1 ABB E2.2H 800 Ekip Dip LI 4p WMP
1SDA072891R1
072891
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA072891R1 E2.2H 800 Ekip Dip LI 4p WMP is an air circuit breaker designed for major power distribution applications, offering reliable fault interruption and robust overload protection for complex electrical networks. It integrates advanced electronic release mechanisms to maintain operational safety.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108468A1902
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 835b79d8-7d2d-4821-b204-4ba05aff07e7 Italy
- Simplified SCIP: 00194216-ce2b-4580-b40f-230471a60d3c Belgium
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZBHPEFAA000A000000XX
- EAN: 8015644767419
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1902 |
| 9AKK108468A1909 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 835b79d8-7d2d-4821-b204-4ba05aff07e7 Italy |
| Simplified SCIP | 00194216-ce2b-4580-b40f-230471a60d3c Belgium |
| 1b8664e2-b686-443d-80fb-ac9a0353a7e9 Sweden | |
| 50e35086-12c9-48f8-a825-2a249cd4c913 Germany | |
| efd17ee1-dba4-4c83-9173-0397072fa76f Sweden | |
| 6606fbae-b6aa-44c1-996e-4dbdc7a331dd Germany | |
| 4570aed2-9549-428f-a9d7-78364ac2646f Poland | |
| 30431069-7f91-49d9-b300-29ef70927532 Spain | |
| e2704dda-ea94-4c8c-8fd9-ce302178c93b Poland | |
| fffe3c10-cd73-4e13-bd2f-350c101f7885 Germany | |
| 821359cb-e9a0-4886-ab03-c35860d9ad72 Norway | |
| 3b1813c6-e1b6-4c04-ab00-26b7b2156785 Germany | |
| 5ac62013-64b2-4456-ab41-373213681d55 Germany | |
| f914e4af-493d-4b42-bd9c-d911e1b19230 Netherlands | |
| 3a0c6498-2b04-48d8-adb1-b8a71f517f46 Belgium | |
| 5ae4bb50-d60a-4bd0-b3f4-589cfd6f08d5 Finland | |
| 0bf6f450-b56a-4b24-9e49-3511f0f0665c Denmark | |
| 2fb993c3-f346-486e-b74b-bc56f2c437b8 Poland | |
| 49b43703-1a9b-4c8f-964e-0a9edcfdcbe2 Bulgaria | |
| 8aaa12ba-eadc-408c-b158-bb2fa3d2ecd6 Croatia | |
| 203b744c-e064-4dac-b770-9e00f0e53312 Czech Republic | |
| febbc9f7-7805-4311-9fef-3256101b5c95 Greece | |
| 5be00860-e0f0-4ca1-b5a9-82073f7b4246 Portugal | |
| a09f0602-3ada-4d89-bd25-17fdb6fda3d5 France | |
| db43009e-9183-48c5-be9b-6d58de1f7d52 France | |
| 3bf25ffd-304b-4c26-8f84-4049663f4923 Hungary | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZBHPEFAA000A000000XX |
| EAN | 8015644767419 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 407 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 55 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 60 kg |
| Package Level 1 EAN | 8015644767419 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0432 |
| Technical | |
| Connecting Capacity | 600 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 72 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (660 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 85 kA |
| for 3 s 66 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 100 kA |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 690V |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001000R0102 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
