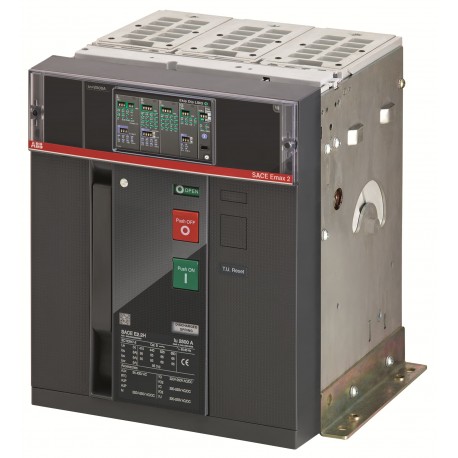

1SDA070943R1 ABB E2.2H 1000 Ekip Dip LSIG 3p F HR
1SDA070943R1
070943
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA070943R1 ABB E2.2H 1000 Ekip Dip LSIG 3p F HR supplied by Abb functions as a high-capacity air circuit breaker built to protect demanding industrial electrical networks. It offers precise electronic tripping characteristics to isolate faults rapidly and maintain stability across primary power distribution grids. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108468A1902
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 3524ebd0-506e-4842-a980-5debc7b3c0d7 Italy
- Simplified SCIP: 80158952-43e2-4528-b0e8-5ecfd4e35f6a Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z2HQEGBC000A000000XX
- EAN: 8015644747930
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1902 |
| 9AKK108468A1909 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3524ebd0-506e-4842-a980-5debc7b3c0d7 Italy |
| Simplified SCIP | 80158952-43e2-4528-b0e8-5ecfd4e35f6a Germany |
| 5c288ab6-fd2a-47c3-969e-be7d20e5a2f0 Spain | |
| 5b0456d4-4d16-4b5c-9353-e3f07feb2fe7 Belgium | |
| 3a601751-e3ea-4ec3-8911-c58671e8d0a3 Hungary | |
| e177d9fc-afb7-400f-b216-a8c6a960a2ed Germany | |
| 7e5b07da-fe01-4014-a920-ac4d28208e74 Croatia | |
| 94a74485-0f86-4abb-8327-839ba8e7fe7a Bulgaria | |
| 3cea7eb8-ec05-4a2a-b9c2-1e9d0614e279 Germany | |
| a5f85d71-3aec-4ba1-819b-d3202a3cdf8c Estonia | |
| 705be766-e203-4cec-88a3-94c33c87334d Germany | |
| cec22d4e-37e1-4e4c-828e-2cf065d01ec0 Germany | |
| 969f9bf4-8dfe-4e08-afbf-58fb3df03a0a Denmark | |
| 660053e0-176b-48ee-9137-44b24cc5b52e France | |
| 2f6e5966-4136-4401-8150-60bceeed5ab6 Greece | |
| ca98a39c-17fe-4866-8839-0a0a91e1490f Finland | |
| 12d9cf51-8ecc-4ab7-8d20-5505bbb56257 Netherlands | |
| 82e6c02d-d6b2-42cd-a453-3228b82d582b Belgium | |
| 082efb1d-3516-44a9-b885-3f692be1f338 Sweden | |
| a53c5ef4-0562-47fa-8516-bb3b586f36a4 Hungary | |
| ed87ce75-0144-47f2-bbed-677fdc310f79 Norway | |
| ed901245-02c5-4c60-a781-2e21236023a3 Poland | |
| 2754cb36-aecf-4f86-b564-4aa5f75f78cb France | |
| 0494ba2a-a17f-4f46-8495-04269c13d748 Poland | |
| 590f0ef7-8d8c-4dc9-b3af-a16fb4392c74 Czech Republic | |
| 49503878-ff53-48c0-baad-f11891d0b73f Poland | |
| 918f0d0e-e541-4d77-8830-71fe86d5d81e Portugal | |
| 632f9036-a5cb-4562-bc51-2349a110ce0e Sweden | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z2HQEGBC000A000000XX |
| EAN | 8015644747930 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 276 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 41 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 46 kg |
| Package Level 1 EAN | 8015644747930 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0083 |
| Technical | |
| Connecting Capacity | 600 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 53 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (660 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 85 kA |
| for 3 s 66 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 100 kA |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001000R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
