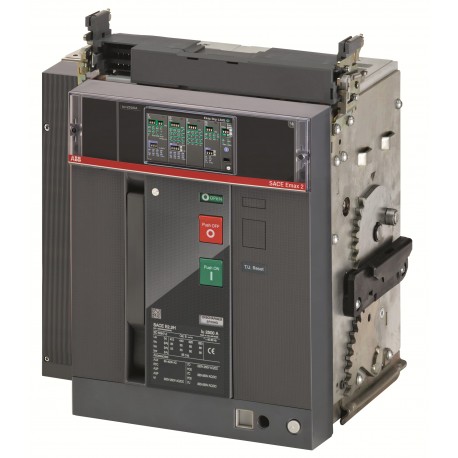

1SDA072963R1 ABB E2.2B 1600 Ekip Dip LSIG 4p WMP
1SDA072963R1
072963
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB E2.2B 1600 Ekip Dip LSIG 4p WMP functions as a draw-out air circuit breaker engineered to protect comprehensive electrical distribution grids from overloads, short circuits, and ground faults. Four-pole withdrawable units facilitate safe routine maintenance and clear isolation in high-power applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108468A1902
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: af3c6908-79d4-470e-9844-d5ea861e7923 India
- Simplified SCIP: 55ce6cee-48da-4b31-835a-4339b4e52e1c France
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZBBSEJAC000A000000XX
- EAN: 8015644768133
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1902 |
| 9AKK108468A1909 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | af3c6908-79d4-470e-9844-d5ea861e7923 India |
| Simplified SCIP | 55ce6cee-48da-4b31-835a-4339b4e52e1c France |
| 4816b228-1b5a-4e19-a75c-978b972c4f07 Hungary | |
| 094193b3-fb5a-46e8-bfe0-8b23d98b9e39 Belgium | |
| b0cb5b2d-3566-4394-82bf-05a78f243924 Spain | |
| 467d2bbc-c4c2-4e7e-90f6-aece21e81bda Poland | |
| f34fa250-c020-4d3b-a031-fe0509a91669 Czech Republic | |
| 27674a93-c6c1-4224-be57-403230fa423a Croatia | |
| e558cfd1-291e-439e-92cf-c7f22d08468e Germany | |
| 00d6f28d-df2a-4f86-89c5-9eccffde547a Hungary | |
| bdd20ec1-d43f-4045-8422-de99202af69f Netherlands | |
| bc99163c-c724-489e-8432-651b886bc69c Estonia | |
| 993d2115-3cf0-44cd-a021-71f1cedef1f4 Sweden | |
| ff5983ae-ae35-42af-b1b1-8fe4aec897f6 Greece | |
| fd554b0a-4a1e-42cb-9a70-a17a630356d9 Germany | |
| beb7c1b8-ac68-4803-bf95-61bee192c9f1 Sweden | |
| 60a95def-65a1-4760-a1f7-6721f12cdc80 Germany | |
| 130a2e5a-155b-47c6-873b-1fb70d1f8c79 Poland | |
| c49a94d4-d885-4c23-83eb-02c1b5656b70 Bulgaria | |
| 0ff5ebed-0237-4a24-b906-913cfd339f40 France | |
| 8697e519-f129-4853-8479-a7b47f6eeb67 Portugal | |
| 2502cf88-70c4-48e3-bf99-7565a4c16c31 Belgium | |
| f2c297f8-6e42-4030-80f0-935f2ffc0d22 Finland | |
| d2e29a1d-a2d5-415c-a35b-d6c4dfe3d091 Norway | |
| d35e7454-2439-4c08-b077-6ca8672893f7 Germany | |
| 7e3baae1-0a4b-470d-bebf-bfc26077bba2 Denmark | |
| 3d244580-5ab2-465c-906f-e0bbbd69eec1 Germany | |
| 55a9950d-12d1-4bcd-a811-5bcbd3ee9728 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZBBSEJAC000A000000XX |
| EAN | 8015644768133 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 407 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 55 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 60 kg |
| Package Level 1 EAN | 8015644768133 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0432 |
| Technical | |
| Connecting Capacity | 1200 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 12000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 288 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 42 kA |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (525 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 690V |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001000R0102 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
