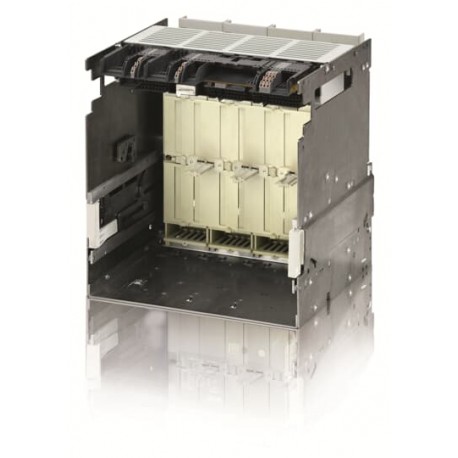

1SDA073910R1 ABB E2.2 W FP Iu 2000 4p HR HR
1SDA073910R1
073910
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
E2.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb part number 1SDA073910R1 is an E2.2 W FP Iu 2000 4p HR HR designed as a withdrawable fixed part chassis for high-capacity air circuit breakers. It provides a secure structural dock that permits safe insertion, testing, and removal of the main circuit breaker within industrial power distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZBC20A0XX
- EAN: 8015644778439
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 407 mm
- Product Net Height: 425 mm
- Product Net Depth / Length: 383 mm
- Product Net Weight: 44 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 570 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZBC20A0XX |
| EAN | 8015644778439 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 407 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 44 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 570 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 49 kg |
| Package Level 1 EAN | 8015644778439 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | W FP |
| Technical | |
| Current Type | AC |
| Electrical Durability | 2000 cycle |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| 800 V AC | |
| 900 V AC | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 900 V |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC |
| Sub-type | E2.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH001000R0820 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers |
| Object Classification Code | Q |
| UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
