View larger
Images are for illustrative purposes only. Please refer to data sheet for details

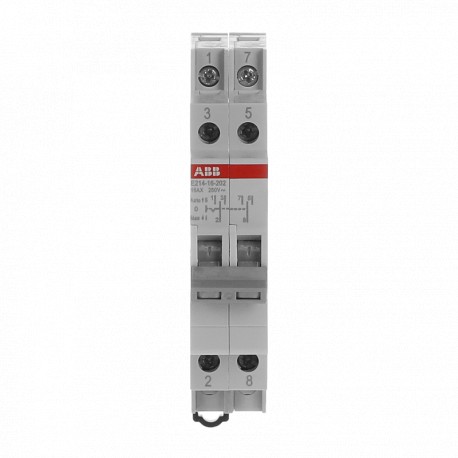

2CCA703030R0001 ABB E214-16-10 Group switch 16A 2x I-0-II 250VAC
2CCA703030R0001
703030
ABB
10 Pcs.
E214-16-10 Group switch 16A 2x I-0-II 250VAC
Sel.de E214-16-202 16A 2CO Remote
Group Switch, 16 A, acc. to EN 250 V AC, 0NO, 0NC, 2CO, El. Color: Grey, MW: 1
Automation > Main switch for distribution board
E210
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Rated Service Short-Circuit Breaking Capacity (Ics) | 3 kA |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 |
| Number of Poles | 2P |
| Tightening Torque | 1.2-1.5 N·m |
| Switch Type | Group |
| Material of Conductor | Copper |
| Remarks | Sealable in the On and Off positions |
| Cover Color | Grey |
| Connecting Capacity | Solid 1x1…6 mm² |
| Solid 2x2.5 mm² | |
| Flexible 1x0.75…2x2.5 mm² | |
| Electrical | |
| Rated Voltage (Ur) | Minimum 250 V |
| Rated Operational Voltage | acc. to EN 250 V AC |
| acc. to UL 508 240 V AC | |
| Input Voltage Type | AC |
| Rated Current (In) | 16 A |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 0.82 W |
| Number of Contacts CO | 2 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Number of Auxiliary Contacts CO (SPDT) | 2 |
| Design | |
| Control Element Color | Grey |
| Material Compliance | |
| RoHS Declaration | 2CCC441014D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20170426 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20190425 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25...+55 °C |
| Storage -40...+70 °C | |
| Degree of Protection | IP20 |
| Environmental Information | 2CCC441003C0201 |
| Dimensions | |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 18 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 87 g |
| Built-In Depth (t2) | 68 mm |
| Engineering | |
| EPLAN Data | 9AAC407653_EPLAN |
| Ordering | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Gross Weight | 966 g |
| E-Number (Finland) | 3602419 |
| E-Number (Norway) | 1429749 |
| E-Number (Sweden) | 2102795 |
| E-Number (Switzerland) | 437162238 |
| Certificates and Declarations | |
| CB Certificate | 9AKK108466A3845 |
| CCC Certificate | 9AKK108466A3832 |
| Declaration of Conformity - CE | 2CCC441014D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6137 |
| VDE Certificate | 9AKK107991A9822 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC441003C0101 |
| External Classifications and Standards | |
| ETIM 9 | EC001545 - Main switch for distribution board |
| ETIM 10 | EC001545 - Main switch for distribution board |
| UNSPSC | 39122214 |
| eClass | V11.0 : 27142301 |
| IDEA Granular Category Code (IGCC) | 5208 >> Controller switch |
| Object Classification Code | S |
| Standards | EN60669-1 |
| VDE0632-1 | |
| IEC60068-2-2 | |
| IEC60068-2-1 | |
| IEC60068-2-38 | |
| UL508 | |
| Feature Name | Feature Value |
|---|---|
| Switching function (EF000189) | Other |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of poles (EF001391) | 2 |
| Rated current (EF000227) | 16 A |
| Rated voltage (EF000228) | 250 V |
| Min. rated voltage (EF005025) | 250 V |
| Short-circuit breaking capacity (Icw) (EF002562) | 3 kA |
| Voltage type (EF000187) | Other |
| With signal lamp (EF000198) | No |
| Colour calotte (EF004668) | Grey |
| Width in number of modular spacings (EF002950) | 1 |
| Built-in depth (EF000218) | 68 mm |
| Degree of protection (IP) (EF005474) | IP20 |
