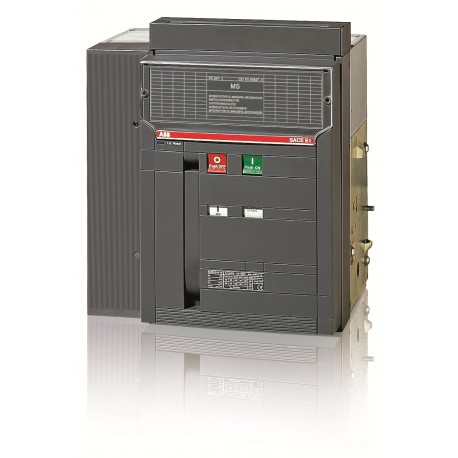

1SDA058934R1 ABB E1N/MS 800 4p F HR new
1SDA058934R1
058934
ABB
1 Pcs.
Connectors > Switch disconnector
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for heavy industrial power distribution, the Abb 1SDA058934R1 E1N/MS 800 4p F HR new is a high-capacity circuit disconnector used to interrupt high currents safely during servicing. Air circuit breaker frames and disconnectors of this scale form the backbone of main switchboards in large commercial and manufacturing facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- Environmental Information: 9AKK10103A6076
- EAN: 8015644612931
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 386 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 50 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
- Package Level 1 Height: 600 mm
- Package Level 1 Depth / Length: 615 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644612931 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 386 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 50 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 62 kg |
| Package Level 1 EAN | 8015644609139 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Switch Disconnector |
| Product Type | Switch-disconnector |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | 10000 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 65 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 800 A |
| Rated Operational Voltage | 690 V AC |
| 250 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 36 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
