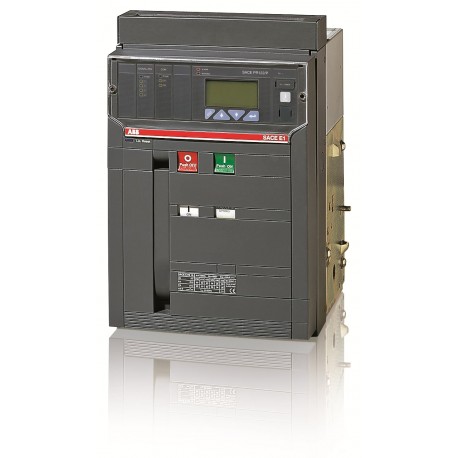

1SDA055699R1 ABB E1N 800 PR122/P-LI In 800A 3p F HR
1SDA055699R1
055699
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Heavy-duty electrical protection is delivered by the ABB 1SDA055699R1 air circuit breaker, built to interrupt immense fault currents in primary industrial switchboards. Air breakers safeguard utility connections and prevent costly facility outages.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 237c5e55-365b-4497-831a-aa63a5212593 Italy
- Simplified SCIP: 85e15f63-1baf-4954-a5f6-b2c08dad9f34 Czech Republic
- Environmental Information: 9AKK10103A6076
- EAN: 8015644570392
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 40 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 237c5e55-365b-4497-831a-aa63a5212593 Italy |
| Simplified SCIP | 85e15f63-1baf-4954-a5f6-b2c08dad9f34 Czech Republic |
| b3e1402b-c2c1-4715-9507-8fb93240b603 Germany | |
| a894321a-8ab3-419f-9634-8b67e968dd07 Denmark | |
| 1591d46c-3fa6-4d42-88d7-bd17834110d5 Finland | |
| 34fa7063-9769-4418-98ee-506a32e22a27 Germany | |
| cbd373c4-fa9a-418c-b204-3c4defdbd811 Norway | |
| e7254c50-9380-4515-9f19-38a37775d459 Poland | |
| c1c63e6a-bba5-4d07-aace-ca4a1544f3d5 Hungary | |
| f0e28ecb-a0d8-4311-b40e-dbaa30bc4757 Poland | |
| a74c4193-3174-4713-b5ee-3bf57e7fd98c Germany | |
| 5217d31d-f94f-4fbf-9c82-930754995b21 Germany | |
| 7415af09-1bf1-401c-9347-40d1c75820dc Spain | |
| 36bf6d46-a078-4a6e-838e-a1b21f50c291 France | |
| 31dfbb0d-add9-4ae3-bcfa-f491b8054a56 Hungary | |
| 5f17744e-21ca-4397-9305-c55bc2555629 France | |
| f9597f92-7f19-4bb3-b843-9cccb456c5a0 Sweden | |
| 73170cd2-8c3f-4446-9789-0837e77fe31b Sweden | |
| 83a320ed-eaf9-4f57-8912-aa79224d8f76 Bulgaria | |
| a376e863-b6f9-4c1c-ba10-7a6d7c9aea6b Belgium | |
| 37b03fc6-40cd-4d44-9cd6-c7fe2e849c0f Estonia | |
| 9874a952-b9a8-4961-b1af-af3b883451c1 Greece | |
| bb2bd6c3-d24b-4b93-abb8-761d21007918 Germany | |
| ebc4ce2c-a092-4987-9cf3-6796cc6b4c5d Poland | |
| b3061c5d-5db4-45f4-8195-3926edb0b86c Croatia | |
| 70032e40-9dde-4c66-bb95-2f6b217fb977 Portugal | |
| 8eb526f6-2c73-4f3f-8457-5227025ddbee Belgium | |
| ec55b12d-7fc7-4690-a50b-b361f55e8487 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644570392 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 40 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 50 kg |
| Package Level 1 EAN | 8015644570392 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 65 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 800 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
