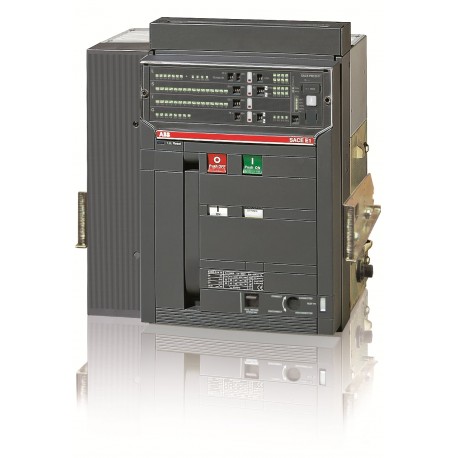

1SDA055722R1 ABB E1N 800 PR121/P-LSIG In 800A 4p W MP
1SDA055722R1
055722
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA055722R1 is an air circuit breaker mechanism designed for high-capacity electrical distribution and comprehensive fault protection. Systems utilizing these units benefit from precise parameter monitoring and reliable isolation capabilities in demanding industrial grids.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: eef179ea-1c75-4a25-8aa8-39a2977e57fb Italy
- Simplified SCIP: 07b8686b-d3b9-4aa7-bc68-609a5558700c France
- Environmental Information: 9AKK10103A6076
- EAN: 8015644570620
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 414 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 54 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | eef179ea-1c75-4a25-8aa8-39a2977e57fb Italy |
| Simplified SCIP | 07b8686b-d3b9-4aa7-bc68-609a5558700c France |
| 034cd045-c60f-431a-8dcd-2131cd124279 Hungary | |
| 60db5a5b-3023-4a78-8af6-5b9e1dc5e55e Germany | |
| 23f0d5a4-ed54-4ea3-a2a7-d710357bfc57 Germany | |
| 2daa4d5a-7110-410f-92a6-03695d0caa44 Belgium | |
| 631e20da-bf51-4065-b570-370e4500e06d Spain | |
| eae57f32-2ea5-4886-b2ef-853fe63ccf21 Poland | |
| 1d7f51ae-6501-4255-898f-3b7acc098731 Netherlands | |
| bc0d780b-fc60-4eb6-96f6-4e6315c98291 Czech Republic | |
| 586c3579-5158-4e2a-828d-fb8e5cfa8d58 Croatia | |
| ebadd924-90f3-4972-9f39-c344e050bfaf Germany | |
| a52ad95e-9802-4e97-ab24-08c3bbd7a4f0 Estonia | |
| 522ef57e-2837-4f57-bc50-858a3a3b363d Hungary | |
| 5dbc791b-182f-4415-ab70-45812fc2db7e Greece | |
| e15fa1f6-e700-45d8-afe4-15d09dd32b0e Portugal | |
| 9af4abed-30ae-4eb3-9b23-8493a3174cc7 Bulgaria | |
| 978f9c30-3212-486a-b82d-7a0f1e593328 Sweden | |
| 951ef961-13dc-4f24-b851-7a60bf598933 Poland | |
| a3e19fa1-d565-4029-a65b-95a2ede40e87 France | |
| ddf7930c-e5c1-477b-bacd-4a9035e3a460 Sweden | |
| 40b218db-faa3-42c5-8fa7-219cc8fccdfc Germany | |
| c16fb678-0f30-4210-90ae-3e12dac3c65e Poland | |
| 81f70640-c3f0-4b2e-96b3-06b133942e3c Finland | |
| 237433a7-b550-4137-b568-92ba61ba6bf2 Norway | |
| de4cd3e4-f82b-4560-8247-6c1e0db4d602 Belgium | |
| c97cd56c-4995-40a8-ba9c-e752a2910f7f Germany | |
| 0fd5920c-ef43-4d11-9687-21813c8f6f6a Denmark | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644570620 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 414 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 54 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 8015644570620 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 95 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 800 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
