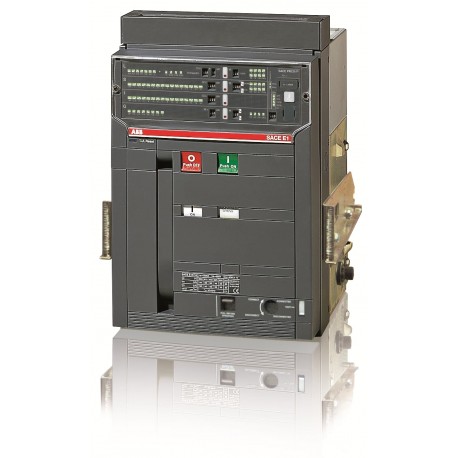

1SDA055778R1 ABB E1N 1600 PR121/P-LSIG In 1600A 3p W MP
1SDA055778R1
055778
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for heavy industrial switchgear, the Abb 1SDA055778R1 air circuit-breaker delivers exceptional current interruption performance and precise trip protection. Such withdrawable units allow facility managers to isolate high-amperage circuits safely during maintenance operations. Final pricing, stock status, and delivery schedules are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 6921ca82-33c9-4bc0-b4f1-0a603004a78c Italy
- Simplified SCIP: 76c40539-1813-4247-a8d3-e4ccf744d408 Croatia
- Environmental Information: 9AKK10103A6076
- EAN: 8015644571184
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 44 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 6921ca82-33c9-4bc0-b4f1-0a603004a78c Italy |
| Simplified SCIP | 76c40539-1813-4247-a8d3-e4ccf744d408 Croatia |
| 035c87ab-261f-4a36-9a67-62f9c19af6ac Greece | |
| 20fbd87e-cebd-49b4-bc29-7c9314b90f26 Belgium | |
| d1479d3e-c635-49e6-a900-ff8b786a6350 Germany | |
| a59f0f4d-3fe5-48e7-b48f-6c104f7dd397 Hungary | |
| 0eac8ad1-3f89-4598-865d-6ea871252dc5 Spain | |
| 9e4e8c0f-9910-4c98-98a1-359a35ba117c France | |
| 7906c18d-8032-4400-a4b7-72e94eeadce7 Germany | |
| e43de275-fcac-4855-8f6d-5a4e1061ed5c Sweden | |
| 7826c757-3f1a-46ce-ac70-7c26b47db5c0 France | |
| 506b4ccb-752b-46c0-8d2d-2d048664c54c Estonia | |
| 1b55fe58-6dc6-4ba5-8bab-0bd0fb77808f Sweden | |
| 043a9b32-b713-4543-9a8c-096f52887ece Germany | |
| 3ceb9af2-15f4-4977-9de5-cab639d217b1 Poland | |
| 52b0b8c2-7b54-41cb-9588-43a86278fdb6 Bulgaria | |
| 8e6bb5f0-2c58-41aa-abed-41e4798fe221 Poland | |
| eea99d86-8457-478e-ae9a-13069b7d98ff Finland | |
| 23f3a9c9-17fb-4d57-9ff2-07ab41b99523 Denmark | |
| 1abd0f17-a704-43a4-af8e-fecef54e84f4 Norway | |
| 2fe204b6-4c2d-4ba2-95a9-a953ddf045ab Germany | |
| c9c69efa-419a-496c-9c90-aecfee6dbb20 Belgium | |
| 3310ee4c-677e-4541-a689-e554c64279ea Germany | |
| 6973c6fe-0cd6-442d-9b49-3c4409d7371d Czech Republic | |
| 4e11fb0b-9765-4efc-aff5-040295b057e4 Poland | |
| 42c1339d-a395-4f3b-be5a-2a5ea93774b7 Netherlands | |
| e7ee8e45-65ca-47df-bfc4-1f21849d30cd Portugal | |
| d2c86dbd-2e9c-4c52-986b-8e4d45dc1a7f Hungary | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644571184 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 44 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644571184 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 378 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
