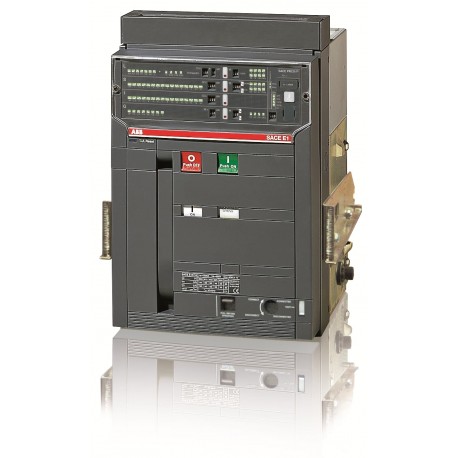

ABB 1SDA055777R1 1SDA055777R1 ABB E1N 1600 PR121/P-LSI In 1600A 3p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055777R1 ABB E1N 1600 PR121/P-LSI In 1600A 3p W MP

1SDA055777R1

055777

ABB

1 Pcs.

E1N 1600 PR121/P-LSI In=1600A 3p W MP E1N1600 PR121/P LSI 3P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP7d772677-0f95-4bcf-a368-319fb7544c3f Italy
Simplified SCIP4c2c745c-a30a-4936-b014-be1acda665df Bulgaria
6038186f-5a56-4b03-8eb9-4289bb584e1b Hungary
0518ae01-a58e-4b49-8a17-ee8c0b26634b Belgium
100a0120-86d4-4e28-a61c-621021cbc3ae Czech Republic
99430c25-eb22-46e9-86fe-dbf79a6aa973 Netherlands
fc381869-c81e-4eb6-ac7f-dd36d46f19eb Portugal
84ce6d0a-73f0-4bb2-b61c-3b2c9e939bf7 Poland
f21fa823-a113-448c-a093-73dc388f5971 Germany
15173747-d654-4673-8d1f-1495c261d3b5 Germany
704c865e-decd-441e-9ba7-e3e3de86e8b2 Denmark
d45c94cc-5f29-437d-8bbb-2a34646191cf Croatia
557cc0c5-4f61-4279-90e0-e77a697a4510 Poland
cad6cd68-aa2c-46d4-8065-812de261aa46 Norway
42e345c2-a1ce-4306-a623-238d68f5f5ee Finland
922663fc-f4d2-48cc-829e-55fc12a1a85f Germany
199dcb69-ad48-48a4-a8b4-e18d4ff4e2d9 Sweden
872065d4-0032-458c-af4d-cef7c862e577 France
79adcf68-6e1f-432b-a446-44c570beda08 France
ae97d3ed-c2bc-46db-a40e-a83802f83070 Hungary
4863ff44-c30c-400f-b7b3-802e1c2ccdde Estonia
ed75b14d-2d28-438a-8e72-7c808fc28b19 Sweden
9c9d15d3-c1f8-4374-9f58-2379629856aa Greece
25bc9d84-8dc3-45d1-a971-eaa05cfd6272 Germany
7d5eb16b-65bd-4512-8420-23adb3cdfeab Belgium
f8cf46e0-7b5d-4f74-87d2-d8087ad2cc75 Poland
dd2c0b74-a7b7-4a6a-8c4b-ea586d0a2d80 Spain
efa2fc0d-c449-4b2e-8a81-f123d80488c0 Germany
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644571177
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width324 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight44 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight55 kg
Package Level 1 EAN8015644571177
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss378 W
Rated Current (In)1600 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1600 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 50 kA
(230 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(380 V AC) 50 kA
(690 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
for 3 s 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 50 kA
(230 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(380 V AC) 50 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)1600 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSI
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE1
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0013
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
