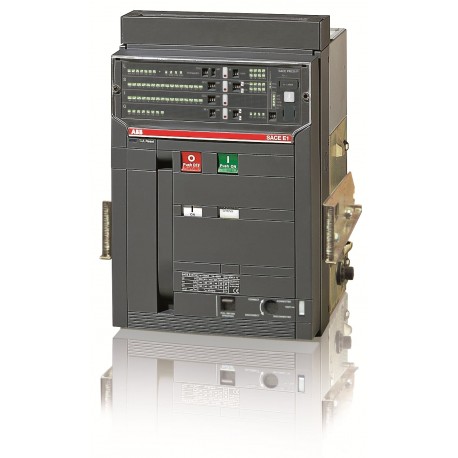

1SDA055776R1 ABB E1N 1600 PR121/P-LI In 1600A 3p W MP
1SDA055776R1
055776
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb part number 1SDA055776R1 is an ABB E1N 1600 PR121/P-LI In 1600A 3p W MP, serving as a primary protective device in complex power distribution grids. Air circuit breakers of this type manage high amperage loads while offering precise electronic trip unit oversight. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 5d21422b-d788-4113-838b-7d8fd07a1af5 Italy
- Simplified SCIP: 40fc168e-4174-4354-92cc-4594951acd7e Bulgaria
- Environmental Information: 9AKK10103A6076
- EAN: 8015644571160
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 44 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 5d21422b-d788-4113-838b-7d8fd07a1af5 Italy |
| Simplified SCIP | 40fc168e-4174-4354-92cc-4594951acd7e Bulgaria |
| 4f4b840c-1a94-4ffd-8140-513bc0dd0b43 Poland | |
| 24bb32bb-0db4-4f4d-a01c-6620943c6a19 Poland | |
| e63a7ff8-3f3c-4472-84c2-9d665c9cc6dd Denmark | |
| f8a16817-2778-4dfb-a6ac-1dfeef369c9a Germany | |
| 669b3354-9a2b-4996-9574-0a6b16e899ec Norway | |
| ba17cd23-34e4-49f4-8a80-3baa12be3375 Belgium | |
| db6e6ef2-17f2-4562-83d7-7507dd87e553 Croatia | |
| 768e6521-19ca-4a78-89ca-33ed60d869f1 Hungary | |
| 85484574-e1da-4abe-a933-d8d524b8dede Poland | |
| c2f7d97f-4f29-462e-ba1f-0c2140be6226 Czech Republic | |
| f62ad740-596c-4ce2-85ed-07e5802faa3f Netherlands | |
| cfb51583-6eb8-41e9-bf8b-7822a0168799 Portugal | |
| 7a440834-a8ea-4879-9258-ecbc6ef69a22 Germany | |
| e3ab24df-77b4-481c-ac7a-39a3aacac985 Finland | |
| 4ef2b127-117d-4b8c-b465-a1baccca8496 Germany | |
| a36e4384-c6dd-4661-a442-93f5b35d6938 Germany | |
| 87e02566-951f-4ecc-9be5-a123176f4c07 Sweden | |
| 5bef1d24-843e-4d7c-b4ac-477dc8f8e0de France | |
| 708c3386-7240-417d-95c7-9fc4b49fdc50 Greece | |
| dce75578-dcfb-4996-b56a-6c959992b3d7 Germany | |
| 7fed812a-8db5-44d9-bf0b-f2136bd3b2a5 Belgium | |
| b676fb23-443f-4b96-9974-d64b1433ec9a Spain | |
| f89a18a3-21f8-4ebb-ac5e-4634ac6bd630 Hungary | |
| 871a846e-dabc-4f17-8632-5c22c9520b8a France | |
| ed1ca0c3-cc68-43b6-93d8-fadb7efc4fcb Sweden | |
| 1d4ad8c1-ee46-484d-90ce-6878dd32df30 Estonia | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644571160 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 44 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644571160 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 378 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
