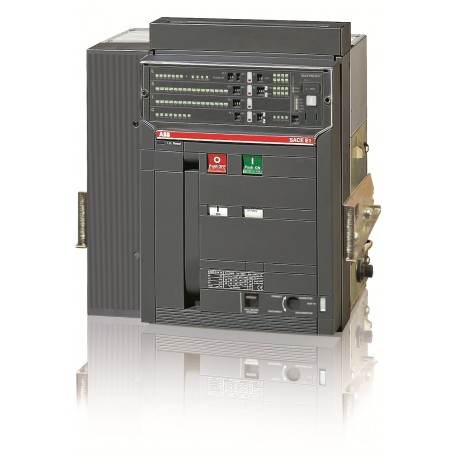

1SDA055754R1 ABB E1N 1250 PR121/P-LSIG In 1250A 4p W MP
1SDA055754R1
055754
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Air circuit breaker from Abb, part number 1SDA055754R1, engineered for high-current protection in industrial power distribution panels. This equipment is essential for interrupting fault currents and maintaining system integrity across heavy commercial and factory applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 31270e94-fb1e-4732-985f-187a51768106 Italy
- Simplified SCIP: fc60869c-a8e4-4a6e-8b5a-91ffad0e1f12 Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644570941
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 414 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 54 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 31270e94-fb1e-4732-985f-187a51768106 Italy |
| Simplified SCIP | fc60869c-a8e4-4a6e-8b5a-91ffad0e1f12 Germany |
| 017bc18b-fe48-4757-833f-fba5af4bf232 Denmark | |
| 596c0f8f-24fd-4445-8897-582af2f4e2ca Germany | |
| 8fdf5638-cd07-4f65-9d3b-3613211054ce Croatia | |
| bb2eeae8-26c4-4adc-8fca-91bb8fd9253e Estonia | |
| ed634820-85e9-4cfe-be87-2cbe1c79d384 Hungary | |
| da05d9d2-b421-431a-862f-d28aeec99187 Greece | |
| c967f1de-b9ec-4a95-af5d-6557a69e8bd2 Poland | |
| c4e74304-42f3-412a-8651-e27ba03d5d4b Bulgaria | |
| f4f6513e-6c7a-423a-894c-7113d6c7d1f2 Sweden | |
| 76d61c36-6729-4b72-8e52-cdab826b96b3 Portugal | |
| b14a4598-ab15-4a85-9b24-99c0d1356344 Sweden | |
| e3bdd2be-e5d6-4b89-99a9-e66f28b09d7a Poland | |
| 034cfd80-52c9-426d-8f92-083c5ba3e1d1 Germany | |
| 96a3238c-0f56-40d2-87a7-26d0f98f76e7 Norway | |
| d46c6ae0-1cdf-479a-b4ec-5601d0129ec3 Belgium | |
| 0109713c-899e-4bf6-b986-1c5cc648d7af Finland | |
| d1eff938-c69e-4ece-8d07-3f8aa16bb9e0 Belgium | |
| 6d18df69-80e5-4fd4-8604-f4860bbb6eb6 Germany | |
| af1e0634-7d30-4e5d-8b1b-33a44b30ede8 France | |
| d64e9934-267d-4152-b8da-25b7081ffdc8 Germany | |
| 12c0315e-ce5e-46fb-93c8-4699e8dad524 Spain | |
| a6294429-4273-477a-995e-dc7b1475513e France | |
| a7c92bb1-a1bf-4542-b995-2fffd2642035 Hungary | |
| 0c8c0ea9-f94a-4dcc-bc1e-a91df7d25e1f Poland | |
| 31cecbfe-b405-4aac-b8bf-57614ababc04 Czech Republic | |
| f3e25df3-d71c-4ec6-82f1-8525db45b497 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644570941 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 414 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 54 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 8015644570941 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 230 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
