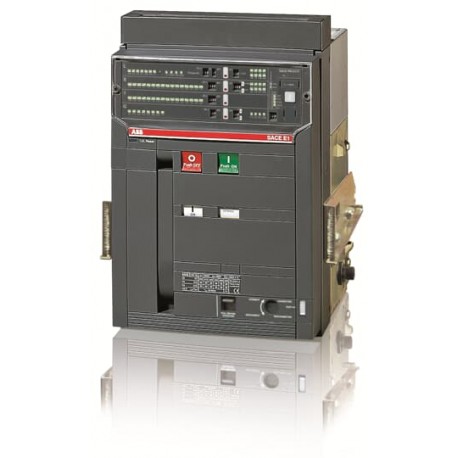

ABB 1SDA055746R1 1SDA055746R1 ABB E1N 1250 PR121/P-LSIG In 1250A 3p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055746R1 ABB E1N 1250 PR121/P-LSIG In 1250A 3p W MP

1SDA055746R1

055746

ABB

1 Pcs.

E1N 1250 PR121/P-LSIG In=1250A 3p W MP E1N1250 PR121/P LSIG 3P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP47dd47e7-7195-416c-a018-1834a22fbffe Italy
Simplified SCIP6798e705-9357-4629-a3f8-49643ea41d60 France
29057c38-474f-4261-8727-16659df75a08 Greece
52e46c75-c4f2-49e4-a4a7-3872c683b732 Belgium
666c9118-e00b-4640-b79c-a8c9ce5227b4 Germany
1d3ee119-51fc-4429-b500-fd01415fba8d Hungary
7c712573-164a-4e60-b4f7-c583cee7a203 France
fe9de3fe-1d5e-4504-b5f6-a4a5d516262c Spain
64c25a79-cd37-4ad9-8a10-faab0bbc0de9 Sweden
e451ffe7-1ef0-4c1e-92d6-eca31478122d Germany
6e85976d-3dc7-48d3-82b0-1546b9fa1353 Sweden
b6bc81b0-af64-439f-9225-bd343d4f973b Estonia
c5ec776d-0e4a-481c-9a19-428cac8311c3 Germany
0d2829b1-76f9-4e90-aecd-9e89cffdec26 Finland
734d0c8a-a5b3-4b87-956d-583e9d277d88 Poland
6fbc5caa-609a-4cc4-8088-5071301567ce Bulgaria
b06025bd-ce2d-4d37-aaa7-c1678e8aab11 Croatia
5d86119e-c72d-44ce-91d0-3275446d1d53 Hungary
4b972de9-637c-4a8d-ba87-23ef735b86a4 Portugal
0482ec0a-4d3c-48da-8fea-1f33e037b3b6 Netherlands
4c9baa8c-1f13-4617-bff2-38f75f7086bd Poland
ad341697-1afa-4344-8c6e-a95471985780 Germany
eaa420ee-1da9-49d5-a0e5-aefb7050924a Belgium
ceac13f8-fe3b-462e-8e16-3d5ccc498e44 Czech Republic
6019e972-79d2-416a-989c-9deb88a0c4b3 Poland
f8c139b1-ee12-47ce-a2d2-1401a3a8fb7c Denmark
e500cd62-f2f6-41f6-9f3d-f1ad0f4c06ec Norway
ae7b38a8-12b7-412f-9380-67bacb57b132 Germany
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644570866
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width324 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight44 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight55 kg
Package Level 1 EAN8015644570866
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss230 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1250 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 50 kA
(230 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(380 V AC) 50 kA
(690 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
for 3 s 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 50 kA
(230 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(380 V AC) 50 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)1250 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE1
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0013
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
