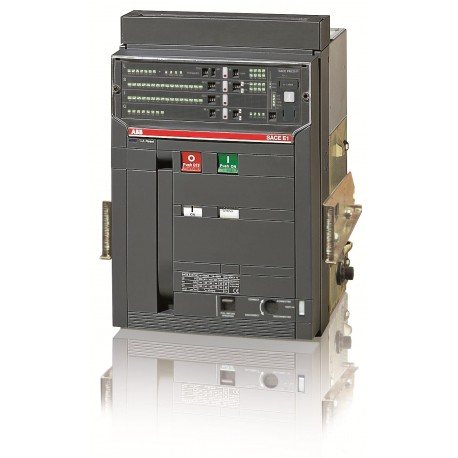

1SDA059222R1 ABB E1N 1000 PR121/P-LSIG In 1000A 3p W MP
1SDA059222R1
059222
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB air circuit breaker, part number 1SDA059222R1, is designed to protect primary electrical distribution circuits from damaging overcurrent and short-circuit events. Industrial facilities rely on withdrawable breakers to secure large electrical systems while facilitating straightforward maintenance access.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 1f3f7ff3-d784-41a1-bbf3-b679f3eb3716 Italy
- Simplified SCIP: 02925f76-f3c6-4857-b74e-aca1c82fee40 Belgium
- Environmental Information: 9AKK10103A6076
- EAN: 8015644615833
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 44 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 1f3f7ff3-d784-41a1-bbf3-b679f3eb3716 Italy |
| Simplified SCIP | 02925f76-f3c6-4857-b74e-aca1c82fee40 Belgium |
| 3c11dec5-72f2-4a4e-9ab2-24c771a67138 Portugal | |
| 8841fbd0-5d6c-4f6b-83c8-a03a0fb6a50d Croatia | |
| 1a07c829-0f89-4ee0-8b20-6f5990c678fb Hungary | |
| 51004b6a-ca4e-4e33-8c3d-600709ece55d Finland | |
| 3b1c3e6d-91a3-473b-a292-bae75d439e53 Germany | |
| 4a68b43c-a321-404f-8092-9c577a54a74f Germany | |
| fbe3d678-cb6d-4fea-b444-60900a8cf629 Hungary | |
| 379e29f3-3863-447a-9e63-7432ed92de65 France | |
| 3d0ebda0-9d5d-481a-88aa-dca8b0bf77fb Spain | |
| 77f7e0a8-6214-45f1-9264-583180b58882 Sweden | |
| a7871a3b-6028-4974-ab69-73b72a040852 France | |
| 26dd1879-28cb-4410-848a-4ac9e0c9e36c Bulgaria | |
| ccb7961b-4f1c-4a61-862d-bb32dc79848a Sweden | |
| b9773f58-165b-4f72-bdf3-3d802cb64b94 Belgium | |
| 785c52fb-8dd2-48f6-b2dc-31f947d48348 Germany | |
| 103cd28d-4293-48e2-83ff-abfaac23c44f Greece | |
| fe3c0698-c6ec-4dbc-bc94-853908ddbe28 Estonia | |
| e62945a6-85c4-4370-8b65-cc58fbc0e3da Poland | |
| 9aa4b15b-276d-4a9a-8203-0904eaedb5d5 Norway | |
| c5d1851e-73e6-41f4-85a5-54fc6d504f78 Germany | |
| 1515b925-8d14-4f25-bd04-a230e0894a66 Denmark | |
| ec21eaba-aa1f-47da-8114-e5a5d9e86058 Germany | |
| ef380d95-8aff-427a-936e-c14fea78945a Czech Republic | |
| 83acb0c5-0ed2-4e76-a070-5d4d4f7423d1 Poland | |
| c7eb3171-91ac-44fe-bedc-79b5d46b54a9 Poland | |
| e6bae8ee-89bd-438e-bcb5-18e3e5198dd7 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644615833 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 44 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644609139 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 147.2 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
