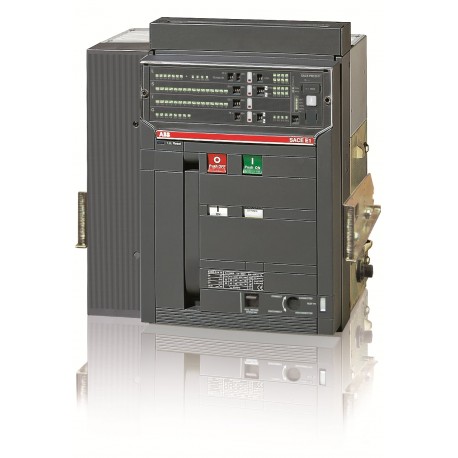

1SDA055626R1 ABB E1B 800 PR121/P-LSIG In 800A 4p W MP
1SDA055626R1
055626
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA055626R1 ABB E1B 800 PR121/P-LSIG In 800A 4p W MP is a draw-out air circuit breaker designed for secure energy management in commercial and industrial power systems. Facilities deploy these protective devices to interrupt overcurrent events and isolate electrical sections safely during maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 5836f7fa-def0-453e-a0bf-db0e77488504 Italy
- Simplified SCIP: 37b5d536-5678-4cef-8013-03962dea6e17 Finland
- Environmental Information: 9AKK10103A6076
- EAN: 8015644569662
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 414 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 54 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 5836f7fa-def0-453e-a0bf-db0e77488504 Italy |
| Simplified SCIP | 37b5d536-5678-4cef-8013-03962dea6e17 Finland |
| ad5a6582-e1f6-453c-8ae2-532241faab29 Belgium | |
| 7db3364e-7bc0-4423-b642-eae395dc26da Norway | |
| 8bef080e-cf39-43b2-983a-5d051d3ab296 Poland | |
| 54c2d40b-450e-4239-8aed-3348e3f48c3c Germany | |
| 3ccab1f9-da05-4831-8961-c897b45adcb3 Germany | |
| 79855fc5-b52e-4bec-b02d-b7d37df5ceaa Greece | |
| c236317a-ea43-4154-a67f-468ab965c762 Portugal | |
| 1cbbcf3e-03d9-40ad-8faf-d5bf39f2a7c2 Denmark | |
| 26951681-e386-4d0f-bbc1-cf19205c11c7 Germany | |
| e05c81f3-8dde-4203-a95c-7f1796bba931 Croatia | |
| 1c320ee0-d19f-4bae-ade6-c8815219bb12 Czech Republic | |
| f0a6055b-7a94-4def-b43e-9c3070f06bc5 Poland | |
| f28aa0a5-456d-48d9-ab42-efec1e264d7c Netherlands | |
| 44800b10-22a2-4bb8-b118-a2001be5b3c9 Germany | |
| 6476e4aa-2323-4cb8-b490-b208923e31e1 Germany | |
| 940f1de6-6343-45b8-a467-c3239148d4b8 France | |
| 920a3473-8e08-4b2d-9390-9a6b7d463a96 France | |
| 08349a8a-0902-46fd-8dd0-612c5be60553 Hungary | |
| 9c33a68c-80d3-48a0-bdd0-db41af1c4282 Spain | |
| 06fae1bf-7cff-4b5a-97c6-1ef1c66c69d6 Belgium | |
| 1ed9db0b-a1ea-4c91-ae42-501f2e032904 Hungary | |
| f9413fd5-0ed8-44b5-953b-678cc39f8a67 Estonia | |
| 2063ada9-2a67-4c44-a8b1-0fc6d9848251 Sweden | |
| 0d3fdef8-2c7e-4657-8149-6d88aa5fbae7 Poland | |
| 7706be54-797a-40b8-a996-98971b560ffa Bulgaria | |
| 500c6db8-a511-406c-8c9d-e29ac88acbec Sweden | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644569662 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 414 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 54 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 8015644569662 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 95 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 800 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
