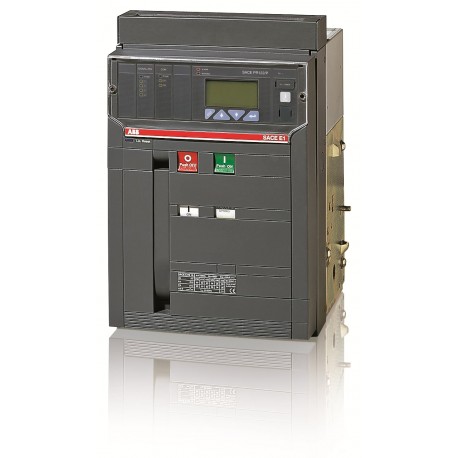

ABB 1SDA055601R1 1SDA055601R1 ABB E1B 800 PR121/P-LSI In 800A 3p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055601R1 ABB E1B 800 PR121/P-LSI In 800A 3p F HR

1SDA055601R1

055601

ABB

1 Pcs.

E1B 800 PR121/P-LSI In=800A 3p F HR E1B800 PR121/P LSI 3P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP6881fcb8-2274-4ec9-ae56-ace20a898b03 Italy
Simplified SCIP83357232-7ba5-4fb2-9c69-3cb2e6205859 Bulgaria
93c2c8c4-780d-4daf-b79a-07bc172f5bc4 Czech Republic
0a702f68-f4db-4506-97d3-db857af75b6d Belgium
b7317957-ba57-42d0-854f-b66901b532dc Poland
410f7f8d-44d4-4062-8c2d-5c0999553344 Portugal
31eabf82-416c-429f-8a24-258445886eae Netherlands
6d7f2fdb-4373-4649-8162-bfd99461ee71 Hungary
9ed1d01d-a955-41c9-949b-6855afbafc07 Denmark
7ffa127b-5ddc-42a1-b367-82125ac1dc76 Germany
81846d63-04e0-4721-a340-339f11ffefe7 Norway
d9ee221a-e80b-4468-a9ac-e90074d889b6 Croatia
52a4e4a6-880a-4383-aa7f-4d85932c56f1 Germany
292240ff-4b11-41fc-9aec-49fdd2b426f9 Poland
069042ec-fd7c-46b8-9b4f-705e0fb0ccbb Finland
78fb5a6b-2822-4a7d-a97d-32c21ef7966a Germany
00c41c76-134c-4801-bc4a-6630e4bc30e9 France
89700129-e68b-4b87-8ad5-e564415522cf Sweden
615b7314-2baf-4fbb-82be-656243e0ddbc Germany
7799f03d-42ed-4166-a031-e1365afd63d5 Belgium
a27cc088-043c-4bef-8efc-248b9c5157c9 Greece
ad4646d7-1988-4d37-9239-2f1e7d065824 Germany
be113881-c967-400d-ab55-d8e40b9449d7 France
589dffdb-6e72-4e5a-92f3-910b0c1e0551 Hungary
2962574c-d310-471e-a3f3-9340b22a648c Poland
5c43d101-c798-4dcd-9d57-1a70d53c6d9a Sweden
45133562-e41f-4e6b-bb95-e85e5c8d753d Estonia
2d132a5f-05bf-4eea-ae9c-8b12fe6d464d Spain
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644569419
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width296 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight40 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight50 kg
Package Level 1 EAN8015644569419
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 10000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss65 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)800 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)800 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSI
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE1
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0013
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
