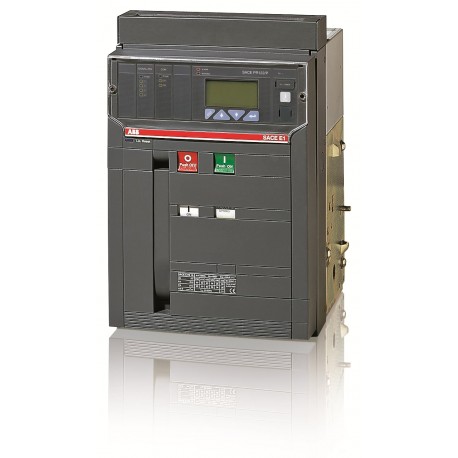

1SDA055600R1 ABB E1B 800 PR121/P-LI In 800A 3p F HR
1SDA055600R1
055600
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An air circuit breaker designated as 1SDA055600R1 ABB E1B 800 PR121/P-LI In 800A 3p F HR serves as a primary protective device in heavy electrical distribution networks. Industrial facilities depend on these switching components to clear high-energy faults and ensure operational safety.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 9607b984-96df-47a6-aa07-0b255e82665f Italy
- Simplified SCIP: 223f3054-e436-486d-89ae-c7e425e950c9 Bulgaria
- Environmental Information: 9AKK10103A6076
- EAN: 8015644569402
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 40 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 9607b984-96df-47a6-aa07-0b255e82665f Italy |
| Simplified SCIP | 223f3054-e436-486d-89ae-c7e425e950c9 Bulgaria |
| b668801e-38ea-4de3-b105-84204a9d676f Portugal | |
| ea119e44-c9ba-4729-b46a-a3b15cfce545 Hungary | |
| 1231b83a-e314-416c-90d4-da4bdc3c718e Denmark | |
| 8fb5b7b8-b506-4709-a8da-1468bec89035 Germany | |
| 369f2178-f07a-439f-828f-c4f10a92368d Croatia | |
| 06ba85df-9707-45cf-b8ff-eee8e2299c0d Germany | |
| 410d489d-1348-4cde-a0b6-ed7db6d9d931 Czech Republic | |
| 704fa731-6256-40f3-8b55-0be03d2f0687 Poland | |
| 68ef2792-ab2a-45fe-ac63-82568a33d0cf Belgium | |
| af595640-c9cf-422b-9d01-545bde52cfe0 Netherlands | |
| 0baf3c33-b0c7-41a3-9b5c-97a6ef6c2aaf Poland | |
| dfe129a2-e8b2-4cd0-b2e9-9f6655885e7a Norway | |
| 177dbfc6-c2a8-4c41-af10-f52f09bda667 Poland | |
| a80f1be0-4ceb-4ba5-b450-a98628c825f9 France | |
| c5ff33bc-dd2f-43ff-a63a-f186829e2b8c Spain | |
| 732cae13-0494-478c-8d3a-adcb6d6964b8 Sweden | |
| 406bb88b-a950-469a-91a1-781b862293eb Estonia | |
| 77514c1f-0b79-4d2e-8b7a-ff7855a12854 Greece | |
| cfd6aa9f-7092-48cc-9d79-030175b2024c Germany | |
| ebb3f6bf-cbbc-48a6-be4d-c45760abe186 Belgium | |
| ee1c2e11-2c5d-4f1d-919e-38199a976852 Hungary | |
| 38e59c90-fa72-4094-bc53-7ed5c3663f80 Germany | |
| 88a24e8b-bb17-4178-8cc7-8fa4d0c272ef Sweden | |
| 2e088ee5-d8e8-4963-95ad-ae5bfeb5b738 France | |
| c7afcbe0-4c32-462b-9e8b-7f8df7bddbfe Finland | |
| 8e032b47-ace3-42a0-b92d-0d40c7d0dde5 Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644569402 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 40 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 50 kg |
| Package Level 1 EAN | 8015644569402 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 65 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 800 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LI |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
