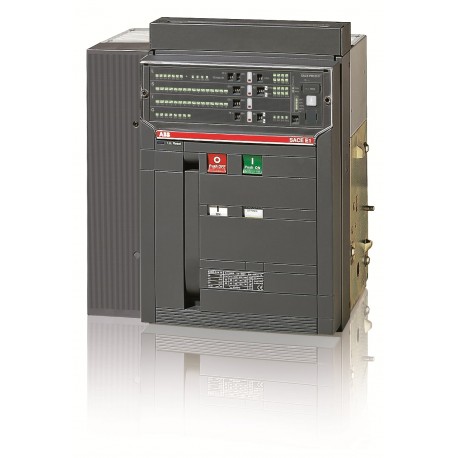

ABB 1SDA055674R1 1SDA055674R1 ABB E1B 1600 PR121/P-LSIG In 1600A 4p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055674R1 ABB E1B 1600 PR121/P-LSIG In 1600A 4p F HR

1SDA055674R1

055674

ABB

1 Pcs.

E1B 1600 PR121/P-LSIG In=1600A 4p F HR E1B1600 PR121/P LSIG 4P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP646c8c68-9c89-420d-a26b-4b4e7eeb4625 Italy
Simplified SCIP4d554245-4f66-4a5d-badc-30395e0671b0 Sweden
15ffacb6-97f3-4069-882a-4bf93fce0195 Estonia
eb9f959c-38d5-4637-a33b-b54900f2d477 Hungary
670b34af-190a-47ea-ae26-129881ff74bc Poland
84f32f71-414b-4345-bf49-bfaa4ef919f7 Czech Republic
d2b05174-6474-4d5f-aca4-4a191f883c19 Croatia
e59adc31-a191-41b0-8271-a71b1ce8ea73 Germany
054037da-a00a-464f-b714-858e54e47d3e Greece
257be0d4-8bb7-41e4-8ea8-7c8ca1b92501 Portugal
07ec2a1d-2f2a-4620-836a-cc18cb85111e Poland
c67642e1-69fe-43db-afef-69e0a826e8bf Bulgaria
17704064-fbd5-40c7-945a-df223b65f86c Finland
3dbb6372-cd82-4d1d-884d-a3562e5c538c Norway
58b2f356-837e-4f04-ba61-4bacd7409b3e Denmark
3f920bd5-0321-4551-9c73-216dace9c575 Netherlands
499d8cf9-dfb7-4b5e-8042-3513b10b821a Hungary
26d0ed58-034d-4d98-8bd4-dda19a7a3c4b France
ad729c21-4854-44c3-a2b2-2d7a27d28bf6 Belgium
d74200af-52ca-440b-b80a-afc0049a4c20 Spain
6c76ad5d-abe3-411f-9a5f-add6af7faf66 Poland
28fc08ac-aab1-4a2e-b797-cc154d6a6040 Germany
26b49f3e-afa7-4798-b6f8-13c8c9cf53fc Belgium
c0c7afb9-9bda-4ea6-aef7-1af5c06e1d94 Germany
88efb1e8-99c1-4b44-8f06-6ad4d07da3b4 Germany
3fd57d8f-e477-4dd9-ab73-9aa0c1be7606 Germany
86024e39-d45f-4623-9ecd-c4408b73e3e2 France
5715ed8c-1988-485b-be0d-c0df31ab3cc8 Sweden
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644570149
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width386 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight50 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight62 kg
Package Level 1 EAN8015644570149
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles4P
Power Loss253 W
Rated Current (In)1600 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1600 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)1600 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE1
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0013
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
