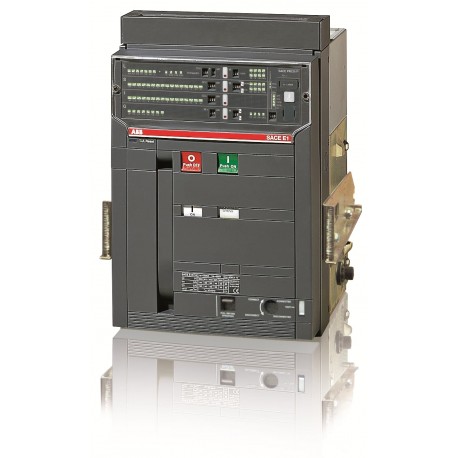

1SDA055682R1 ABB E1B 1600 PR121/P-LSIG In 1600A 3p W MP
1SDA055682R1
055682
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for industrial power distribution networks, this ABB E1B 1600 PR121/P-LSIG In 1600A 3p W MP air circuit breaker provides reliable isolation and overcurrent protection. Main switchgear lineups utilize draw-out circuit breakers to manage heavy electrical loads and simplify maintenance procedures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 3c1c46a3-0918-4854-ac2b-05133d6d90a3 Italy
- Simplified SCIP: e0200963-3aad-4825-89cf-68899faea671 Finland
- Environmental Information: 9AKK10103A6076
- EAN: 8015644570224
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 44 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 3c1c46a3-0918-4854-ac2b-05133d6d90a3 Italy |
| Simplified SCIP | e0200963-3aad-4825-89cf-68899faea671 Finland |
| 8d359a70-9c07-488d-9d2f-c1c884acf64c Germany | |
| 4038936f-bdf8-42cc-a143-2f3d72a9d6be Belgium | |
| aa6b2d53-8775-46fd-b4e0-00834f494f7b Greece | |
| 4c296884-420a-4a57-aac3-e6dbe6114c4b Germany | |
| f699c734-7f0c-4467-ba8e-2aabceaa0ada Estonia | |
| 359baffe-95c6-4da1-b97e-152431601c02 Sweden | |
| c6a3e057-7542-45e0-b0cc-0d448b0eb4cf Poland | |
| 4313f894-4d4c-4f04-8e1a-2c357e3df4a9 Bulgaria | |
| b388fa94-5c35-4905-9b8b-fafb8d6cb1c8 France | |
| 9cc61723-3704-42e5-96c0-ea45540324d2 Sweden | |
| e47ed02e-e380-491a-86be-ba04b039b77c Hungary | |
| 4f1d7916-6019-49b1-9804-ba60532f5d06 France | |
| af81cde7-9521-4a00-8ccd-b3e0768cb3c4 Spain | |
| 4c04d77e-a666-49f7-8ece-03466a306785 Germany | |
| 6049aaa4-6c0d-49f2-a2c8-f4854990a989 Hungary | |
| 0a2656b6-e800-478e-abdf-20749b377632 Portugal | |
| bf0759e4-c9a1-4d28-aac4-c06a62db2e90 Croatia | |
| 8334499b-fb86-47a6-8bd5-7915c96c4c7b Belgium | |
| bcd682c9-7bdb-4b82-bf16-798f0dc31b8d Netherlands | |
| 0d87a758-b462-489a-b9f7-5d93931ea48f Poland | |
| 49430ccd-db06-48ed-9575-d23b3053f587 Poland | |
| 0db3d0ec-1e6f-42eb-bfe3-d4a39ddbe1c9 Germany | |
| 3ab1a14c-791b-4504-850d-cb348b1d3d41 Denmark | |
| 5da5c79a-84ef-4b4c-b5b1-01c25b1e3a79 Germany | |
| 22b7e2ab-0c01-40ec-a764-7dfe51f15488 Norway | |
| 17ddefb4-384a-4179-bc36-8ca635337561 Czech Republic | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644570224 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 44 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644570224 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 378 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
