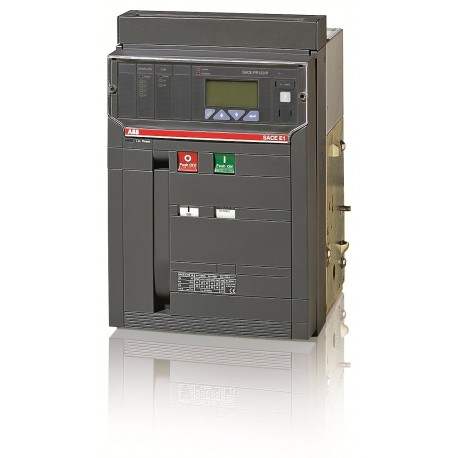

1SDA055664R1 ABB E1B 1600 PR121/P-LI In 1600A 3p F HR
1SDA055664R1
055664
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A high-capacity air circuit breaker, the 1SDA055664R1 ABB E1B 1600 PR121/P-LI In 1600A 3p F HR manages and protects critical energy distribution networks against high fault currents. Large industrial plants and commercial buildings use these robust breakers to isolate faults and protect transformer inputs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 44d6ce57-1abf-4e8a-affb-a77d790a7d8a Italy
- Simplified SCIP: 851dd653-e231-4265-93b8-e09e6e85df0e Bulgaria
- Environmental Information: 9AKK10103A6076
- EAN: 8015644570040
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 40 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 44d6ce57-1abf-4e8a-affb-a77d790a7d8a Italy |
| Simplified SCIP | 851dd653-e231-4265-93b8-e09e6e85df0e Bulgaria |
| 25e874ba-4fa7-4c23-adef-2d015b66d558 Norway | |
| 1331809b-fa5b-4378-a689-79f92961a5e7 Germany | |
| bc8528ba-ac07-4454-a742-b86932dff6b9 Denmark | |
| d1b82331-faea-428d-9896-8e632663b50f Germany | |
| 044d6b2a-097b-4734-a1a1-f8c9cfb68ade Croatia | |
| 5c66af1e-e153-4816-94fa-ddf81d72a2db Poland | |
| e4d93747-ab91-4643-9cf1-44717afa188e Netherlands | |
| 5bb2c760-6b25-4fc9-a366-c9634aaa721c Portugal | |
| fe5ec7d5-088d-4c74-b306-ba0e17a558e1 Poland | |
| 10e3e383-e91e-40d4-9718-6b7106dc58da Czech Republic | |
| 61067a4e-be54-41ed-82f6-3e6c3c29e28e Belgium | |
| d82578a1-8e50-4f6d-94b4-53228f3ffb6a Hungary | |
| 4c91b60b-b401-4ba4-8c1e-d49fbcb5f952 Germany | |
| aacdfe65-d078-41c4-bcf9-15d7e3156977 France | |
| 1e298a13-a815-47dd-bda2-443eddb62582 Sweden | |
| 84a8c67f-d78e-4e86-9edf-d496c745cef8 Spain | |
| 44841101-f0d4-4b90-a908-a3c108ff919f France | |
| 383d111e-90b7-41f9-87c8-8c74fa8a5efc Hungary | |
| eee650de-57d3-4158-b092-27bd8dfda02b Estonia | |
| 37a67ff7-e097-4e71-910b-742bfca985b5 Sweden | |
| fb1794ea-da2e-4ef1-b9a2-9ad32e724a19 Poland | |
| d2ac328e-d9f6-495b-b8cb-91c6706e031a Germany | |
| 6f924234-5ac6-45d7-972e-24f915b3f324 Belgium | |
| e0eaa82f-96e2-4d32-9839-3506181d827e Greece | |
| ce20cdf1-35a1-4cad-8c93-3c4c48047ba2 Finland | |
| c37ced9c-693f-4aa5-9d23-b82fb5391cae Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644570040 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 40 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 50 kg |
| Package Level 1 EAN | 8015644570040 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 253 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LI |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
