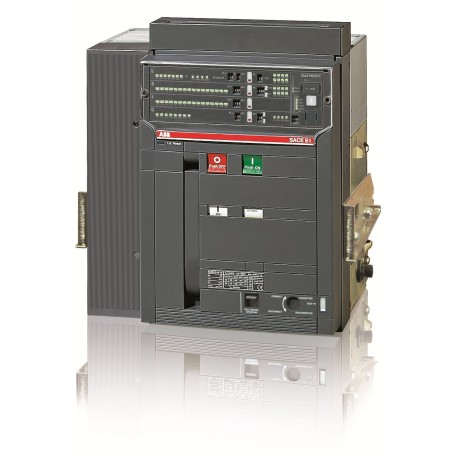

1SDA055657R1 ABB E1B 1250 PR121/P-LSI In 1250A 4p W MP
1SDA055657R1
055657
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb circuit breaker, part number 1SDA055657R1, functions as a high-performance air circuit breaker designed to manage heavy electrical loads and isolate faults in industrial distribution infrastructure. These withdrawable units provide reliable protection and safe maintenance separation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 483b8502-5009-47d4-a5f4-61b831083435 Italy
- Simplified SCIP: 7eecac6a-deb3-41fa-9c08-c831e56219cf Norway
- Environmental Information: 9AKK10103A6076
- EAN: 8015644569976
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 414 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 54 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 483b8502-5009-47d4-a5f4-61b831083435 Italy |
| Simplified SCIP | 7eecac6a-deb3-41fa-9c08-c831e56219cf Norway |
| c57999a0-6638-431c-abf3-6815f908b390 Belgium | |
| 7c508e6f-fa2a-45a2-9882-a17aaf72192f Hungary | |
| e8d20391-294f-4151-bd0d-bbb216f7eaa2 Spain | |
| 9a5d17ec-b951-4555-b285-3f46f7b96f80 France | |
| 457b8cd7-1774-4ea2-b3d3-df708cfe1d98 Germany | |
| 31ff71bc-158a-48c2-9fd1-30db65a3005e Germany | |
| 8fa69e46-c8e5-4755-a65a-79a7aad43cdc Sweden | |
| a41586c9-6284-449a-b9b0-f3d2e7b4a42b France | |
| d626b74d-67d2-4b5e-9ad7-57c44bcdc167 Estonia | |
| 36e0c617-61e4-4b7f-9546-9ffe00e24572 Portugal | |
| db3e0bae-261e-4809-81dc-f9c3b45f6a51 Greece | |
| d4350360-70b3-4f40-8778-8a0ae37a5236 Bulgaria | |
| bf8e4605-defe-423a-9a3c-3512446a477d Sweden | |
| c0702b6e-cd00-4328-9095-0bbe855f12fd Poland | |
| 8c036e8c-b758-479d-bf9a-0f60ff9a6e7c Croatia | |
| 152bf016-797c-43b9-97e2-fae607c50b37 Germany | |
| 7bf0fd4e-ad9b-480a-b790-26bd2647aab2 Denmark | |
| d8cd249e-4963-4cd3-9e1a-dd9f76110134 Hungary | |
| aeb79a5b-fa6d-45c8-9d90-ab697e9f5f34 Czech Republic | |
| c14e342f-cd4d-48ff-864d-f3a3a7dabd2c Poland | |
| c2669955-fa56-4a15-821a-bccfb44f447a Netherlands | |
| 65e4783a-a9f8-4211-98a0-2f6d130b9e8e Germany | |
| 96a64e93-495a-49e9-b456-f867bf34cb3b Poland | |
| 35b903a9-3578-4a26-a54f-ebcc26a2fab9 Germany | |
| 999bedb1-7318-47b2-85e7-a23b1699a01e Finland | |
| 459fc3fd-fcb6-4070-bc41-2efc769d2e6d Belgium | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644569976 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 414 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 54 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 8015644569976 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 230 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
