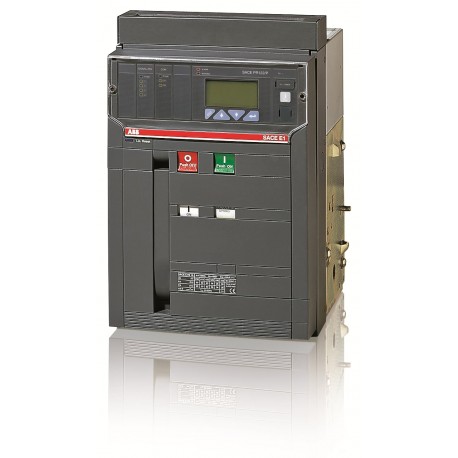

1SDA055632R1 ABB E1B 1250 PR121/P-LI In 1250A 3p F HR
1SDA055632R1
055632
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An air circuit breaker such as the Abb 1SDA055632R1 E1B 1250 PR121/P-LI In 1250A 3p F HR manages high current loads and protects complex electrical distribution infrastructure from harmful overcurrent and short-circuit events. These devices are typically installed in main switchgear assemblies to facilitate safe manual disconnection and automated fault interruption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: fee1eee2-2d15-4c45-858a-c138b1de4d57 Italy
- Simplified SCIP: 79103f62-6f65-4e9d-af48-297163971b69 Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644569723
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 40 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | fee1eee2-2d15-4c45-858a-c138b1de4d57 Italy |
| Simplified SCIP | 79103f62-6f65-4e9d-af48-297163971b69 Germany |
| e8428bef-6cc5-478a-933c-ba329c0d50fe Finland | |
| cebc480f-b1db-4242-b195-dd4d9d0b4942 France | |
| 30ff30ba-522a-4468-9cb6-74b545393007 Germany | |
| 2b8bda08-7425-4880-bfb7-0aea780a5711 Spain | |
| db2aad76-cb4a-4246-893a-834916131b39 France | |
| f6f287c2-e745-4546-b072-bba5574a829b Sweden | |
| ff86c267-50fd-48bf-b9b9-b9f9ff1894e9 Bulgaria | |
| b4364557-addb-442b-b219-6f0466674bcb Germany | |
| 77cecc73-3d08-424e-9c3b-3fff0aa5f4e4 Hungary | |
| c1db6102-0992-4f32-b765-d7aebea9e880 Belgium | |
| 93bd0a71-203c-4ed8-b884-130b9db749c1 Sweden | |
| 31a46390-9a90-49eb-9855-74b7edd0d458 Poland | |
| 6bfa9dde-0648-4600-9d43-7b0eeb89ba2c Estonia | |
| c0c3a5e0-69f5-4954-b4f0-140829c4c1cf Greece | |
| fada4de4-088b-4981-af4a-5ae3229734c2 Poland | |
| c96ea97b-9909-4c16-a8fb-c838f8a58107 Belgium | |
| f2e592c2-fd4a-4245-ba71-00b39dfffa97 Czech Republic | |
| 8c735cba-97ac-4f71-a76a-6e5b5fa64b80 Germany | |
| a87da3cd-a4b9-4acf-a0d1-8f277ba76326 Croatia | |
| cb29042a-e727-4310-a228-bc7f7eb69202 Norway | |
| 65f7ba63-826f-461a-b9fc-558313bd4f30 Denmark | |
| b6ebb670-1c21-4a63-bde2-27ef2a112d82 Portugal | |
| 92fe972d-7d72-45ab-8e9e-0f9e6753a9fe Germany | |
| cf789838-92c3-4b30-aad4-8d3ed2f8b5e5 Netherlands | |
| d18be69c-95d4-49c2-8bdb-c5fab84da6ac Poland | |
| 55cedd4c-ff96-45b2-8140-a6a31792dad7 Hungary | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644569723 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 40 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 50 kg |
| Package Level 1 EAN | 8015644569723 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 150 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LI |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
