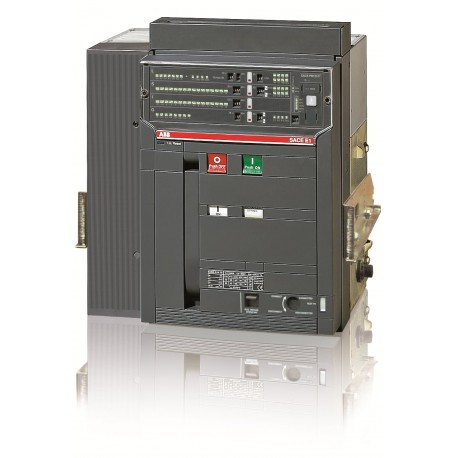

ABB 1SDA059176R1 1SDA059176R1 ABB E1B 1000 PR121/P-LSI In 1000A 4p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA059176R1 ABB E1B 1000 PR121/P-LSI In 1000A 4p W MP

1SDA059176R1

059176

ABB

1 Pcs.

E1B 1000 PR121/P-LSI In=1000A 4p W MP E1B1000 PR121/P LSI 4P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A withdrawable air circuit breaker, such as this ABB E1B 1000 PR121/P-LSI In 1000A 4p W MP, provides essential fault protection and isolation for large-scale electrical networks. These breakers are installed in switchgear assemblies to isolate circuits during maintenance and clear severe overcurrent events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): Document availability on demand
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644615376
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 414 mm
  • Product Net Height: 461 mm
  • Product Net Depth / Length: 396.5 mm
  • Product Net Weight: 54 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 615 mm

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644615376
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width414 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight54 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight67 kg
Package Level 1 EAN8015644609139
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles4P
Power Loss147.2 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)1000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSI
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE1
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0013
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
