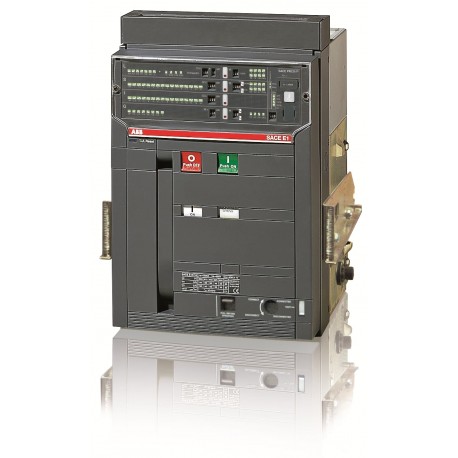

1SDA059174R1 ABB E1B 1000 PR121/P-LSI In 1000A 3p W MP
1SDA059174R1
059174
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA059174R1 ABB E1B 1000 PR121/P-LSI In 1000A 3p W MP is an air circuit breaker engineered to interrupt high-voltage electrical circuits and protect distribution networks from faults. These components are standard elements in electrical switchboards, ensuring operational safety and effective load management across industrial infrastructures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 6589861f-4ea3-4dda-9527-eba7b37a762c Italy
- Simplified SCIP: 9bcda20d-e9cb-440c-93d9-792789e463f1 Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644615352
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 44 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 6589861f-4ea3-4dda-9527-eba7b37a762c Italy |
| Simplified SCIP | 9bcda20d-e9cb-440c-93d9-792789e463f1 Germany |
| 87c62f1c-0dee-4336-9041-1ab46650248c Finland | |
| b40eb9b9-141c-4c7a-8f09-751ec1495339 Estonia | |
| 73332496-d16d-453c-8eb8-7f73f1976759 Poland | |
| a2e5fa75-a674-42cf-9b32-0ce32d3bffb0 Sweden | |
| 76d918b2-61bd-4461-91d4-6d946cfe7471 Greece | |
| 6b814bcb-173b-400a-a795-098ca5afad94 Germany | |
| 3fd5417c-7720-4185-b49c-82cb4dd0c2c9 Sweden | |
| a6fd2411-19fd-4363-98a2-547339aaa2fc France | |
| 088cfea7-6176-4c95-beb4-ac6cd42f6e14 Spain | |
| 1eb8c1e2-05e9-42bd-9729-47438d686f9e Bulgaria | |
| 5b04977b-1255-4e43-be72-a557b4f7231e Hungary | |
| 54bcf8bf-6877-48b3-999e-baa01219a199 Belgium | |
| 993553af-164e-430e-bc19-6abd264f27db Germany | |
| cb0f105b-36a6-49c0-a245-299f005b7c0c France | |
| cae78a5c-531b-4c97-96a1-8edb8f9ce3c6 Hungary | |
| 821d2986-9e6b-4ea1-a9ba-e070c54ac6c8 Germany | |
| e3106b36-435f-463a-8d00-a9001072cb22 Poland | |
| e4c3187e-0ea8-4b07-b27f-443f3c4cc526 Portugal | |
| 9cba44c5-7e95-4912-8374-ab295870e7e6 Netherlands | |
| 2afda7e4-b622-458d-8a60-084dcc365aac Poland | |
| 003731c0-d66f-49d1-a315-5980cbaecd3b Czech Republic | |
| b7d28b93-fd73-4298-ade8-87980e25fd85 Belgium | |
| 53820080-869c-4686-8e3b-dfb487206ed0 Denmark | |
| 429cdeb3-d3b3-4ab8-8f42-e7dc824cc40c Norway | |
| aaf2b951-af32-4bbf-b6b2-e9bce15c3e01 Germany | |
| c17e2105-c46b-465b-b9b8-d5029f499c66 Croatia | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644615352 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 44 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644609139 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 147.2 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
