ABB 1SDA073479R1 1SDA073479R1 ABB E1.2N/MS 800 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

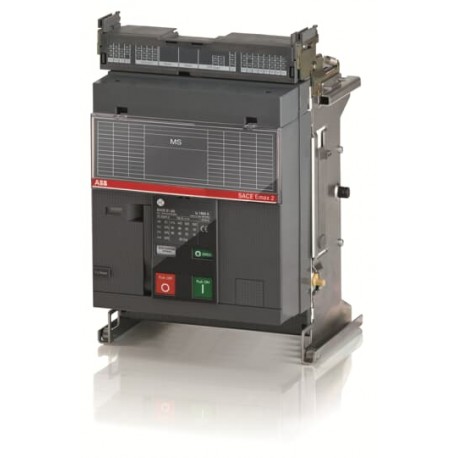

1SDA073479R1 ABB E1.2N/MS 800 3p WMP

1SDA073479R1

073479

ABB

1 Pcs.

E1.2N/MS 800 3p WMP

Connectors > Switch disconnector
E1.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB E1.2N/MS 800 3p WMP withdrawable switch disconnector provides robust circuit isolation and high current-carrying capacity for main distribution switchboards and industrial power systems. Units of this type ensure safe management of high-energy circuits during maintenance routines.

Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • End Of Life Disassembling Instructions: 9AKK108468A2360
  • Environmental Product Declaration - EPD: 9AKK108468A1900
  • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 76.4 %
  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: Z1NP00A00000000000XX
  • EAN: 8015644773298
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 278 mm

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2360
Environmental Product Declaration - EPD9AKK108468A1900
9AKK108468A3028
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 76.4 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZ1NP00A00000000000XX
EAN8015644773298
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width278 mm
Product Net Height363.5 mm
Product Net Depth / Length271 mm
Product Net Weight18 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width270 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length330 mm
Package Level 1 Gross Weight20 kg
Package Level 1 EAN8015644773298
Additional Information
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
VersionW
CAD Dimensional Drawing1SDH001252R0024
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Power Loss100 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
for 3 s 30 kA
Rated Uninterrupted Current (Iu)800 A
Rated Voltage (Ur)690 V
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE1.2
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5546
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH000999R0103
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH000999R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
IDEA Granular Category Code (IGCC)5293 >> Switch disconnector
Object Classification CodeQ
UNSPSC39122233
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
