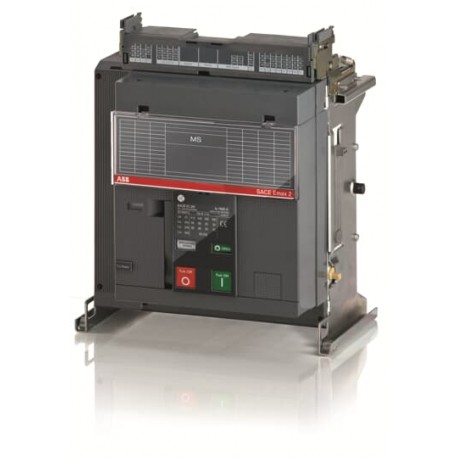

1SDA073516R1 ABB E1.2N/MS 630 4p WMP
1SDA073516R1
073516
ABB
1 Pcs.
E1.2N/MS 630 4p WMP
Connectors > Switch disconnector
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2360 |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| 9AKK108468A3028 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.4 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 2829dd3d-4fbf-4ab5-9514-8e9bdbc32bb7 Italy |
| Simplified SCIP | fcb6e81a-23a3-4af6-9f59-038ea4f70b8d Germany |
| 79a2ea4f-a011-4a32-9687-ca127858ca64 Czech Republic | |
| 03a16994-5fa4-451e-ad57-f4a128a4048a Croatia | |
| f6f53430-a849-4c68-824b-628783796b57 Germany | |
| c868e4bd-ffc3-44e9-a1e3-65eef117f237 Denmark | |
| aaf37dcb-d3ae-44f2-b0de-bcce8d15104f Germany | |
| b6ff5be7-a2fc-49a8-b2cb-43654af20933 Sweden | |
| 00b006c4-2c13-4372-b703-3e9dc401f4e8 Germany | |
| 868a4566-b48b-481d-961c-af5340c66cc1 Spain | |
| 362d703b-03b1-4749-90ae-214bc9a8ac3c Hungary | |
| 365d7bbd-1c11-43b8-820f-d8dc66644108 France | |
| bca647a1-7e29-432f-b598-2b81e4cd6618 Belgium | |
| 8f6ce9f9-7e8e-4b74-ac71-0458f109f898 Greece | |
| 7f2aa4da-c288-40d6-b942-91fea248163c Germany | |
| ce7c7172-5803-4b17-b585-f2a700b4f589 France | |
| c5af3113-dcd2-4ca7-84dc-c211b222a2a1 Belgium | |
| 292fa9bf-ef88-4bca-8da8-e49c954ec58f Poland | |
| 23669c31-ebb0-4092-82af-45de13acfde1 Estonia | |
| 69042ee0-3655-4b7e-a855-186da33691da Hungary | |
| bdbf07b8-2b55-4f31-8411-21d4ffa410be Finland | |
| 774c9d57-6ad2-4178-95b7-178da6307860 Netherlands | |
| bc6105ce-6a8c-4428-a811-3388adcb8c83 Norway | |
| a0e60bf3-873d-4f92-92c1-2e3335fc906f Poland | |
| a517b9af-1688-4e24-9f1c-bf5344835c9c Bulgaria | |
| fb62ab3c-d87e-4d09-ae5e-b0e41ccb381c Portugal | |
| 41cfc4d5-c29c-46e6-9df8-236f422602ec Sweden | |
| c3407663-01be-471e-9ab7-06731b33590d Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZANN00A00000000000XX |
| EAN | 8015644773663 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 348 mm |
| Product Net Height | 363.5 mm |
| Product Net Depth / Length | 271 mm |
| Product Net Weight | 20 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 350 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 23 kg |
| Package Level 1 EAN | 8015644773663 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0065 |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 62 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 30 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1.2 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH000999R0103 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH000999R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 630 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 630 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 630 A |
| Rated short-time withstand current lcw (EF007050) | 50 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
