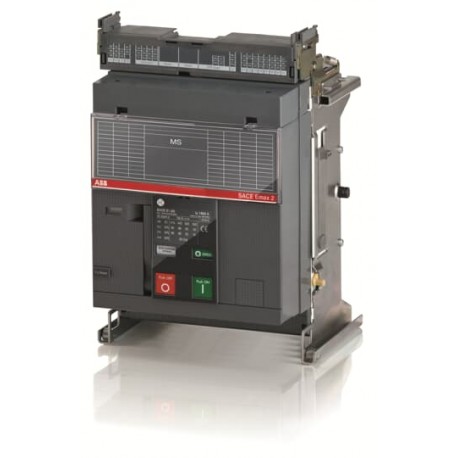

1SDA073477R1 ABB E1.2N/MS 630 3p WMP
1SDA073477R1
073477
ABB
1 Pcs.
E1.2N/MS 630 3p WMP
Connectors > Switch disconnector
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2360 |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| 9AKK108468A3028 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.4 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | d6aa3ef0-5225-429e-8cd9-d9a382087639 Italy |
| Simplified SCIP | ffcade69-7470-4a31-9d1c-75ef1051d917 Sweden |
| d6a72e4f-0e8c-4822-bb34-884339fc89dc Finland | |
| 9c703fc8-2d01-44e3-a61b-b1bf6c0fa08a Poland | |
| da75ddfd-0b56-4599-809d-956aa3898e9f Bulgaria | |
| 25f4c1c4-f124-48b0-a5e0-7468c6b6184d Norway | |
| 636b1e75-4bf5-4f64-a711-57ef69ceff14 Netherlands | |
| 0d41d80f-39d3-48c4-a083-fed62cdb49be Poland | |
| 87c0c46b-f744-4675-8bba-23479b478651 Poland | |
| d3bbff92-54e1-4cd7-847f-564d627f4d78 Greece | |
| 48b76e5b-e347-4f28-9378-cefc4b38306d Belgium | |
| 0a75559a-785c-4843-aac5-6cdaf9445f08 Estonia | |
| ba552fa7-6b73-4e6a-9b23-e7f0776bf91b Croatia | |
| 39ab57c0-85b0-40b2-8406-bd091eb53fa2 Germany | |
| a93e7246-0ab5-4fa3-9099-439b822e54bb Sweden | |
| a11aafed-fcfb-4b8e-8e01-f356dadd772d Denmark | |
| 06da71d9-3f9a-4461-88c3-2c5eea0d4dea Germany | |
| 8667776e-e152-482d-8d82-9997ffefd9e3 Germany | |
| ba130138-82bb-4e30-8490-622eb61a6783 France | |
| ffe19431-fa12-41ad-aab4-71b371c1f3ad Belgium | |
| 40114ebb-72cf-43f1-882d-5909b3222577 Spain | |
| b2a9e2d1-d6c0-412b-9907-ae4b378615c5 Hungary | |
| d46d1a9b-58da-4103-855a-5ef227a04a30 Germany | |
| 7e1e0824-5853-4acf-b5e4-cf7bb52b2e54 France | |
| 439a4a6c-f225-4561-a05a-a4f696d89453 Portugal | |
| 07981ce5-6909-4f34-a9f1-e08fa2ef53de Germany | |
| 94328286-6807-4a2a-8a03-e9af1e54fd08 Czech Republic | |
| 554ce047-52ca-4fd3-8b5e-bea96e742f49 Hungary | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z1NN00A00000000000XX |
| EAN | 8015644773274 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 278 mm |
| Product Net Height | 363.5 mm |
| Product Net Depth / Length | 271 mm |
| Product Net Weight | 18 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 20 kg |
| Package Level 1 EAN | 8015644773274 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0024 |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 62 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 30 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1.2 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH000999R0103 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH000999R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 630 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 630 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 630 A |
| Rated short-time withstand current lcw (EF007050) | 50 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
