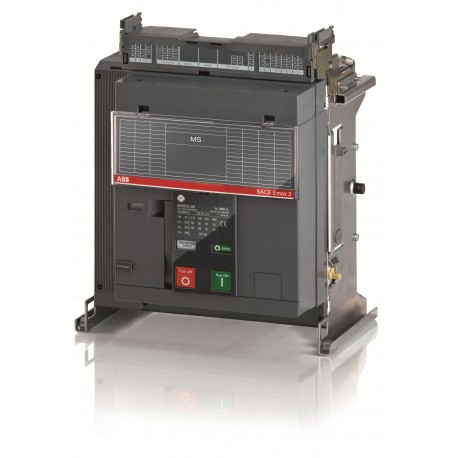

1SDA073524R1 ABB E1.2N/MS 1600 4p WMP
1SDA073524R1
073524
ABB
1 Pcs.
Connectors > Switch disconnector
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SDA073524R1 withdrawable switch-disconnector is implemented in high-capacity electrical switchgear architectures to manage heavy load currents and provide visible disconnection points. The withdrawable design allows technicians to rack the unit out safely from the enclosure rack during routine inspections or servicing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2360
- Environmental Product Declaration - EPD: 9AKK108468A1900
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 4a10508b-c2e1-448a-bad2-b1ce367904ce Italy
- Simplified SCIP: e6e50893-2f43-4103-9d3a-ced991d7f70d Belgium
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZANS00A00000000000XX
- EAN: 8015644773748
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2360 |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| 9AKK108468A3028 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.4 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 4a10508b-c2e1-448a-bad2-b1ce367904ce Italy |
| Simplified SCIP | e6e50893-2f43-4103-9d3a-ced991d7f70d Belgium |
| 4db225bd-8556-4c1f-b3a6-29b5688f06f2 Hungary | |
| 16c86b54-9545-4b49-91c2-13764ed84a5e Spain | |
| 4ae271cc-56a3-4efa-8416-9ed2136e726a France | |
| 2020f86e-89fe-4250-b182-46a2b7294acb Germany | |
| bd2b03ba-f97d-4554-a2a6-6888e290ed7b Croatia | |
| af9309b5-f58a-4a22-ad01-1bff5aa1fab3 Germany | |
| e79f24b2-35f2-4786-a45a-831391679485 Sweden | |
| 92371eab-9cbb-4279-9ebb-0f2623fcdac5 Germany | |
| bed2efc6-5744-4e82-9d67-86e0e9472a13 Denmark | |
| b502f5f0-c1a4-4085-a35a-67947fd5d725 Czech Republic | |
| 94d657a3-ba2c-49f9-bc24-c77cf50c4d97 Germany | |
| f75927d2-49a8-4f1a-83a0-d626b920b319 Poland | |
| 665749dc-d1d6-4e84-9cea-f7c311b74934 Sweden | |
| f778f6ba-4d97-4066-8d73-77403a2a6f91 Poland | |
| ed86e23a-0be9-49c8-956a-3303cf3117fc Bulgaria | |
| 4fe9204a-1a02-4911-a7fc-35a3e8234735 Portugal | |
| cd620e84-76a5-43fa-89de-1524a075f486 Finland | |
| 69586dbb-0674-4677-8255-ed898201fff9 Hungary | |
| d7016e3b-b58d-47b7-a258-5513001a68cd Norway | |
| f04c9279-fd83-42b0-a620-4a5d57bd5ef7 Netherlands | |
| 8b9ac342-d949-4a64-98b7-09a57a7eea72 Estonia | |
| f4a68f81-3726-4681-9348-a66878d3b476 Poland | |
| 5ec61722-2f25-4db2-8fe4-973643cf01f7 Germany | |
| 0631ddcb-f6a1-4b3f-886b-8e7ed9479040 Greece | |
| 6b2a2da6-7e28-49a6-aa6b-2cd8be544ab2 Belgium | |
| 3081fd93-884a-46eb-9fd5-14b8b1a8ffb5 France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZANS00A00000000000XX |
| EAN | 8015644773748 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 348 mm |
| Product Net Height | 363.5 mm |
| Product Net Depth / Length | 271 mm |
| Product Net Weight | 20 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 350 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 23 kg |
| Package Level 1 EAN | 8015644773748 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0065 |
| Technical | |
| Connecting Capacity | 1200 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 6500 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 400 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 30 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1.2 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH000999R0103 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH000999R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
