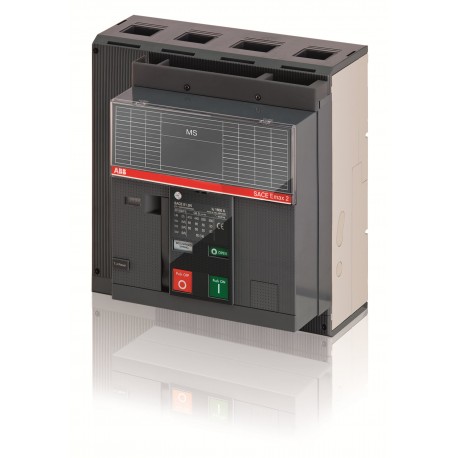

1SDA073440R1 ABB E1.2N/MS 1600 4p F F
1SDA073440R1
073440
ABB
1 Pcs.
E1.2N/MS 1600 4p F F
Connectors > Switch disconnector
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2360 |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| 9AKK108468A3028 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.4 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 9ce91a61-5ff1-4451-901c-e687f35f8674 Italy |
| Simplified SCIP | 693e1066-232d-46f1-aa5d-36edc23954ba Spain |
| 90ced965-a0f0-4400-8c4a-d1009b4f3aaa Belgium | |
| 61edc3c9-2cc9-4709-a1c4-723f5f31eaf1 France | |
| 26ee8a3c-d3e0-4666-83b8-8e5aa0b9aae4 Hungary | |
| 639911d1-cb7c-48eb-8100-bb81ee6c34b5 Croatia | |
| 82db6b0a-8d80-43ee-9775-e65630c95d52 Germany | |
| 1e68d9e9-6b75-44db-b282-83b00ab9be6b Sweden | |
| bd132927-bf26-4a04-b754-5d8a5669c625 France | |
| 3cc11e1f-985d-44f6-a476-2061ef0f100f Denmark | |
| 02804381-9698-4a02-bb1b-76eb3bca2e54 Germany | |
| beaff0aa-f2d4-4aac-9511-218f0655a01d Germany | |
| 923e20ec-5256-40b9-b38f-fa585482ce9b Germany | |
| 64002255-75ad-4df1-9267-5157352a5b4a Czech Republic | |
| 5414d6f8-be6d-4559-aac6-5c9b0311ec3d Germany | |
| 5f2484ff-e4db-488c-85d0-aa518864dbbc Portugal | |
| e417d51a-f95b-4348-94fd-457a9a50b1cb Bulgaria | |
| 3ade9161-e1a6-444b-a1eb-e50336b57845 Poland | |
| 1cfa9238-ba30-44ed-8207-7cd704321554 Poland | |
| 538d880b-c4a6-4f3a-9fef-56d67d03000a Belgium | |
| 5626d4ae-50d9-4bbe-9cea-a0ec1d3d31e4 Finland | |
| 4b5cd2c5-c1ab-41e5-9fb1-ad15e567f4b7 Poland | |
| 51435ed3-8313-4eda-bd58-1ee48b8d6fcb Hungary | |
| de9f1d0d-2d0e-4b9a-a2b6-618f7d93bae9 Estonia | |
| 849244cf-19e5-46e4-9dff-4b43161961e8 Greece | |
| ce0d0010-3ded-4e5a-984f-42f22d87ff25 Sweden | |
| 607c6965-c6c7-415b-ac95-6ec0ee9fd0cb Netherlands | |
| 22362780-561b-4c7b-a346-a88269fa77e8 Norway | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZANS00B00000000000XX |
| EAN | 8015644772901 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 296 mm |
| Product Net Depth / Length | 183 mm |
| Product Net Weight | 16 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 350 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 18 kg |
| Package Level 1 EAN | 8015644772901 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0042 |
| Technical | |
| Connecting Capacity | 1200 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 6500 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 201 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 30 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1.2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 45 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH000999R0101 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH000999R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 1600 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 1600 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1600 A |
| Rated short-time withstand current lcw (EF007050) | 50 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
