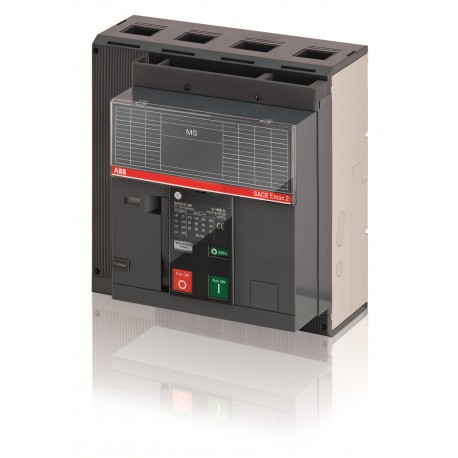

1SDA073438R1 ABB E1.2N/MS 1250 4p F F
1SDA073438R1
073438
ABB
1 Pcs.
Connectors > Switch disconnector
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB fixed-type switch disconnector is engineered to provide reliable load-breaking and secure isolation for heavy industrial electrical circuits. Facilities install these devices within switchgear assemblies to ensure safe operational control and dependable circuit interruption.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2360
- Environmental Product Declaration - EPD: 9AKK108468A1900
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 1SCC303119D0201
- SCIP: 2d202836-b12b-4706-a0e3-756b221b466b Italy
- Simplified SCIP: 6197245f-c6ae-4174-bd50-d90d736e1309 Czech Republic
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZANR00B00000000000XX
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2360 |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| 9AKK108468A3028 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.4 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 2d202836-b12b-4706-a0e3-756b221b466b Italy |
| Simplified SCIP | 6197245f-c6ae-4174-bd50-d90d736e1309 Czech Republic |
| b8f1fe62-bea8-4fc1-bb57-c69e72d87380 Poland | |
| f09c1847-69fd-4873-99f5-47c613220a55 Netherlands | |
| b7bf9852-6195-425c-b257-0353dcca3c5f Germany | |
| adc43ccf-451e-4584-aa1f-7f1a1aa17d77 Croatia | |
| 8a4ea2eb-bf26-46be-9751-f3f0abf70520 Greece | |
| f15ec23a-6d1f-4287-8de1-a9d6a1b270cf Portugal | |
| fb45b8be-e430-402a-a6fc-24cd0e5c8fc8 Sweden | |
| 35dfbfe9-afdd-4083-9563-6076e7d870ed Poland | |
| 735c4675-a816-4297-a8ee-d095de9a2eb4 Bulgaria | |
| f38fcbf8-9712-4cd7-88c9-f54d4754dfb5 Hungary | |
| fdf30a39-d956-4afd-a2db-6414616f956b Estonia | |
| aefa3eab-70c6-4417-b708-2fcb8e7e00c0 Sweden | |
| 95642cc3-7bd5-4b0d-86be-39198020fbe1 France | |
| 1ac576f8-1399-428b-ac63-17299cf3c165 Belgium | |
| 9b31a1a3-2ac9-43f9-b20e-7c3bea97e71a Norway | |
| 2dbe0746-e08b-4e69-a5a0-d5778a46923a Finland | |
| 3633f3e0-a4ae-4b2d-bd43-26a01d9b46ea Poland | |
| 5ff0fdb5-8267-4ef0-a8ac-fe42cea29861 Germany | |
| 0941ed2f-b1ef-481a-8e5d-263adc42cb74 Denmark | |
| af648dc9-4cf3-4eb5-990f-451070dcba74 Germany | |
| f5368235-b7c7-4d68-86ab-94f6c5cad44d Belgium | |
| 94db2608-2cba-4c9e-8ad1-73ce5c98a5a3 Spain | |
| ca56131c-78f0-4686-a4f5-d3fdb3a8ac88 France | |
| 11db01df-7c20-41a2-9f5d-a2132df05c09 Germany | |
| 5ef85201-331b-4961-9450-189535b23bdb Germany | |
| 5654bf9e-83f5-47cb-a090-b6674c489492 Hungary | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZANR00B00000000000XX |
| EAN | 8015644772888 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 296 mm |
| Product Net Depth / Length | 183 mm |
| Product Net Weight | 16 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 350 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 18 kg |
| Package Level 1 EAN | 8015644772888 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0042 |
| Technical | |
| Connecting Capacity | 1000 mm² |
| Current Type | AC |
| Electrical Durability | 8000 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 122 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 30 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1.2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 45 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH000999R0101 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH000999R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
