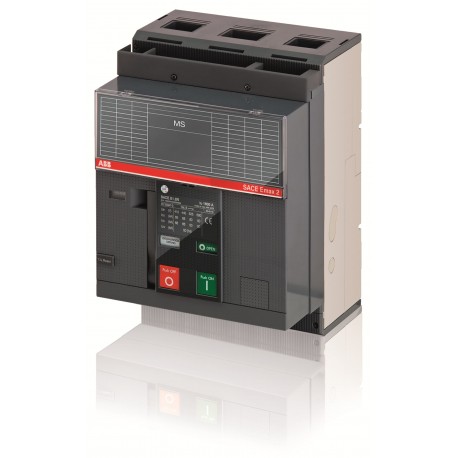

1SDA073399R1 ABB E1.2N/MS 1250 3p F F
1SDA073399R1
073399
ABB
1 Pcs.
E1.2N/MS 1250 3p F F
Connectors > Switch disconnector
E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2360 |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| 9AKK108468A3028 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.4 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 394c26ab-93e4-424e-b89a-d118a57cad15 Italy |
| Simplified SCIP | 4ef1ad47-e0ad-41ed-9f7b-c7af8180985a Poland |
| 9595d215-e748-4830-b96a-1d939525c5a8 Germany | |
| b00d85a2-ecc2-49fd-aa8a-e646b7811b2e Finland | |
| 6ba2f42b-9ae3-432b-b548-076150deb6af Norway | |
| 8e065cb4-8d54-4980-b967-f2af3bb2e35e Belgium | |
| 5636e0cd-944c-4f4f-a592-a4c25e63a983 Germany | |
| d87a2f3f-0e7c-4ebc-991f-fe7467ec18f9 Denmark | |
| d4efe48f-db6b-4a74-a89d-82dbece4e643 Croatia | |
| 720906d4-f418-4830-8850-2a97dba7e3ff Germany | |
| 10204843-6c2a-421e-81ee-ef58c51160a2 Netherlands | |
| b262ed7a-bc5c-4a9a-bd03-b07ff1d10f8c Czech Republic | |
| d57a0406-b4b1-4970-81f4-52f9acd8612c Poland | |
| ef10e0b9-6b25-4906-bf2a-b2cf2999cf6f Hungary | |
| a630b8f9-eaeb-4f5b-b345-63b35b4aa067 Estonia | |
| 57c7cc85-fff1-450e-b13a-f9bf8153d14d Portugal | |
| 1300a579-faa4-45d5-997a-882d1c484025 Greece | |
| 89e45ca9-ea06-4e6a-829c-b00d3587a531 Poland | |
| 3fb1c036-14d8-43fb-bb7a-ffe3352285a7 Sweden | |
| 95cdb130-b559-4f02-b721-d75f9d02f76f Bulgaria | |
| 3fe8b613-73c3-4269-90cd-7b8a21c1f741 France | |
| e03151b5-65ec-4230-8059-22aba416e941 Sweden | |
| 61960a78-e644-4c2a-8805-b252fe0e57cb Belgium | |
| b68eb042-de42-49d8-888b-36ba26c97d49 Hungary | |
| 96c44c0f-9806-48d9-a390-918ddd4e8a78 France | |
| c7fab565-7ed4-4c32-af91-a427c17d8456 Spain | |
| f334a9de-c598-4a9c-a534-21f179827d8c Germany | |
| 7231a8c1-6a81-48da-aa3f-4329e7cdc484 Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z1NR00B00000000000XX |
| EAN | 8015644772499 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 296 mm |
| Product Net Depth / Length | 183 mm |
| Product Net Weight | 14 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 16 kg |
| Package Level 1 EAN | 8015644772499 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0001 |
| Technical | |
| Connecting Capacity | 1000 mm² |
| Current Type | AC |
| Electrical Durability | 8000 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 122 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 30 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1.2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 45 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH000999R0101 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH000999R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 1250 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1250 A |
| Rated short-time withstand current lcw (EF007050) | 50 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
